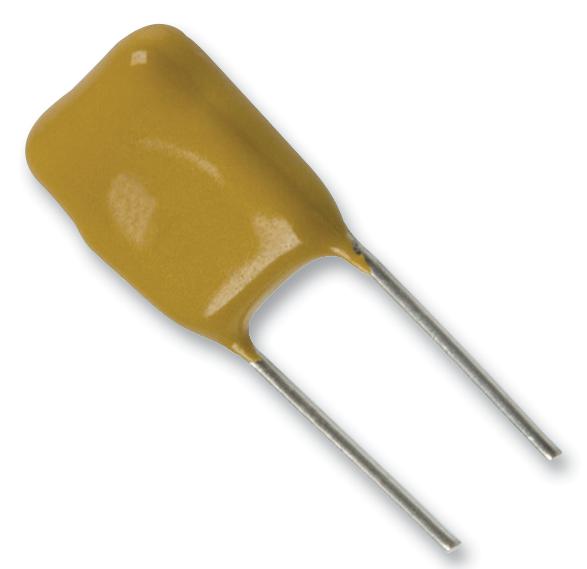

Vishay K100K15C0GF53L2 Ceramic Capacitor
The Vishay K Series multilayer ceramic capacitors offer high capacitance in a compact size, suitable for general purpose applications. Manufactured with Class 1, Class 2, and Class 3 dielectric materials, these capacitors feature high reliability, various mounting styles (crimp and straight leads), and are available in multiple voltages up to 500 V. They are ideal for temperature compensation, coupling, and decoupling in electronic circuits, with a wide operating temperature range from -55°C to +125°C depending on the dielectric class. Their yellow flame-retardant epoxy coating ensures safety and durability.
Vishay K100K15C0GF53L2 Ceramic Capacitor Specifications:
- Capacitance range: 10 pF to 1,000,000 pF (1 μF)
- Voltage ratings: 50 Vp¢, 100 Vp¢, 200 Vp¢, 500 Vp¢
- Dielectric materials: Class 1: COG, Class 2: X7R, Class 3: YSV
- Temperature range: -55°C to +125°C for Class 1 & 2, -30°C to +85°C for YSV
- Lead styles: Straight and kinked, lead spacing: 2.5 mm and 5.0 mm
- Sizes: 10, 15, 20, 27, 33, 39, 47, 56, 68, 82, 100, 120, 150, 180, 220, 270, 330, 390, 470, 560, 680, 820, 1000, 1200, 1500, 1800, 2200, 2700, 3300, 3900, 4700, 5600, 6800, 8200, 10000, 12000, 15000, 18000, 22000, 27000, 33000, 39000, 47000, 56000, 68000, 82000, 100000, 120000, 150000, 180000, 220000, 270000, 330000, 390000, 470000, 560000, 680000, 820000, 1000000 pF
- Material: Ceramic dielectric with flame-retardant epoxy coating
- Climatic category: 55/125/21 (Class 1 & 2), 30/85/21 (Class 3)
- Insulation resistance: ≥100 GΩ at rated voltage within 2 minutes
- Dissipation factor: Max 0.1% for class 1, 2.5-5% for others
- Certifications: RoHS compliant, IEC 60384-9, EIA 198
Buy the Vishay Series K Ceramic Capacitors: K100K15C0GF53L2
Purchase Vishay K series ceramic capacitors K100K15C0GF53L2 online today to ensure high-quality, reliable performance for your electronic projects. These capacitors feature a wide capacitance range from 10 pF to 1,000,000 pF, with multiple voltage ratings up to 500 V. Available in various sizes and lead configurations, they are ideal for temperature compensation, decoupling, and coupling applications. Their robust construction and flame-retardant epoxy coating guarantee durability and safety. Buying online ensures quick delivery and access to technical support for optimal circuit design.
Get Vishay K series ceramic capacitors K100K15C0GF53L2 today—built for high reliability and stability in electronic circuits.
Frequently Asked Questions
Where can I buy Vishay K100K15C0GF53L2?
You can click on the BUY or RFQ button to purchase K100K15C0GF53L2 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part K100K15C0GF53L2?
You can download the K100K15C0GF53L2 datasheet or visit the Vishay website for support.
Who is the manufacturer of K100K15C0GF53L2?
Vishay
