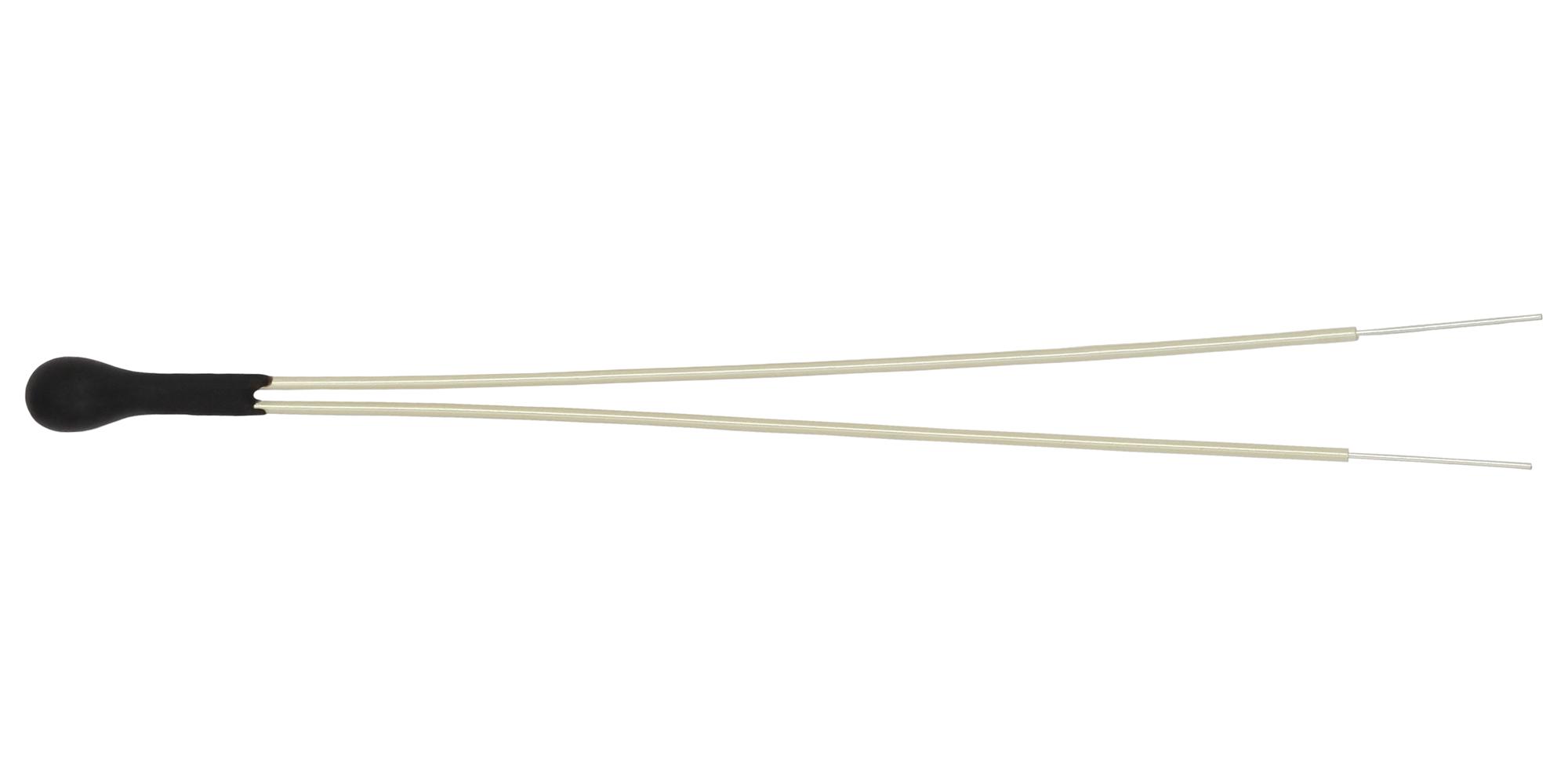

Vishay NTCLE350E4103FLB0 High-Temperature Thermistor
The NTCLE350 is a high-temperature NTC thermistor with insulated leads designed for applications up to 185°C. Its PEEK-insulated NiFe alloy conductor wire provides low thermal conductivity, ensuring accurate temperature sensing within ±1.7°C at the peak temperature. Built with a robust construction, it is suitable for challenging mounting processes such as welding, brazing, molding, and potting. This thermistor is ideal for automotive applications—including combustion engines, electric motors, exhaust gas recirculation, and oil temperature sensors—as well as industrial high-temperature environments. It features a resistance of 10,000 ohms at 25°C, advanced ceramic NTC technology, and is automotive-grade AEC-Q200 qualified. The device operates over a wide temperature range from -55°C to +185°C, with a small body diameter of maximum 2.4mm, offering fast response, high sensitivity, and improved resistance to noxious gases and acids. The insulated leads are gold-plated NiFe alloy with radial mounting capability.
Vishay NTCLE350E4103FLB0 High-Temperature Thermistor Specifications:
- Resistance value at 25 °C: 10,000 ohms
- Tolerance on Resistance: 1,2,3,5 %
- Maximum operating temperature: 185 °C
- Temperature range: -55 °C to +185 °C
- Lead material: Gold-plated NiFe alloy
- Insulation material: PEEK
- Body diameter: maximum 2.4 mm
- Response time (63.2 %) in still air: 6 seconds
- Maximum power dissipation at 55 °C: 100 mW
- Dielectric withstand voltage: 1000 Vac
- Insulation resistance between terminals: 100 MΩ at 500 Vac
- Mounting: Radial
- Compliance: AEC-Q200 qualified
- Resistance at 25 °C: 10 kΩ
- RoHS compliant
- Operating temperature range: -55°C to +185°C
Buy the Vishay NTCLE350 U–Reliable High-Temperature Thermistor for Industrial Applications
Procure the Vishay NTCLE350 thermistor online today for precise temperature sensing up to 185°C. Its insulated PEEK leads and ceramic NTC technology ensure fast response, high sensitivity, and durability under harsh conditions. Suitable for automotive, industrial, and high-temperature applications, this thermistor features a compact 2.4mm body diameter and robust construction for easy integration in complex systems. Order now to enhance your thermal management systems with reliable, industry-grade components designed for demanding environments.
Buy Vishay NTCLE350 thermistor now and experience unmatched reliability and performance in high-temperature automotive and industrial environments.
Frequently Asked Questions
Where can I buy Vishay NTCLE350E4103FLB0?
You can click on the BUY or RFQ button to purchase NTCLE350E4103FLB0 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part NTCLE350E4103FLB0?
You can download the NTCLE350E4103FLB0 datasheet or visit the Vishay website for support.
Who is the manufacturer of NTCLE350E4103FLB0?
Vishay
