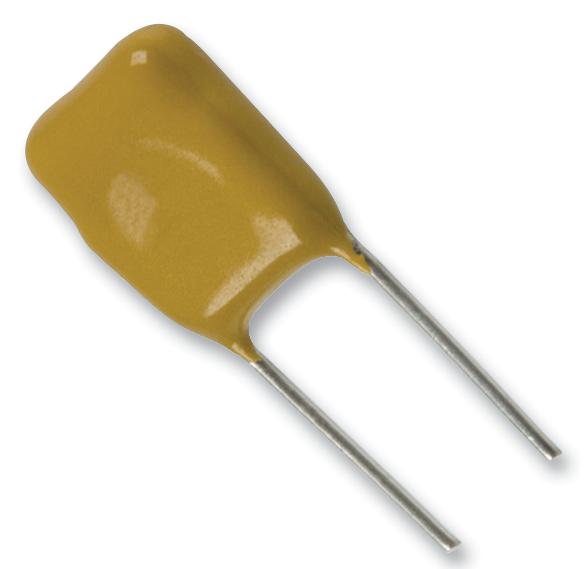

Vishay K102K15X7RK5TL2R Multilayer Ceramic Capacitor
These high-reliability multilayer ceramic capacitors are suitable for automotive applications, certified to AEC-Q200 standards. They feature X7R and X8R dielectrics, operate up to 160°C, and have radial leads available in straight or kinked styles. Designed with wet build technology, they offer high capacitance in small sizes and withstand harsh environments, including high temperature and climatic conditions. They are compliant with RoHS, ELV, and other regulations, making them ideal for reliable automotive and industrial electronic circuits requiring stable performance over wide temperature ranges.
Vishay K102K15X7RK5TL2R Multilayer Ceramic Capacitor Specifications:
- Dielectric: X7R, X8R
- Voltage: 50V, 100V, 200V
- Capacitance Range: 100 pF to 150,000 pF
- Tolerance: +5 %, +10 %, +20 %
- Lead configuration: Radial leads, straight or kinked
- Lead diameter: 0.5 mm
- Operating Temperature Range: -55°C to +160°C
- Climatic Category: 55/125/21
- Material: High reliability MLCC with wet build process
- Coating: Flame retardant epoxy resin (UL 94 V-0)
- Compliance: RoHS, ELV, AEC-Q200 qualified
- Test Voltage: 1.25x rated voltage (up to 250% for 50V/100V, 200% for 200V)
- Insulation Resistance: ≥ 100 GΩ or 1000 times the capacitance in pF, whichever is less
- Dissipation Factor: 0.1% max (Class 1), 2.5% max (Class 2)
Buy the Buy Vishay K102K15X7RK5TL2R Part Number K102K15X7RK5TL2R Online
Purchase Vishay K102K15X7RK5TL2R now to ensure high-performance, reliable operation in demanding automotive and industrial electronic applications. These high-quality MLCCs feature X7R dielectric, operating at up to 160°C, with precise capacitance tolerances, RoHS compliance, and robust mounting options. Ideal for environments requiring stable performance across wide temperature ranges, they are available in bulk pack quantities with verified leads. Order online today and benefit from fast delivery, excellent quality, and dependable electrical characteristics for your critical projects.
Buy Vishay K102K15X7RK5TL2R now and experience unmatched reliability and performance in automotive-grade ceramic capacitors.
Frequently Asked Questions
Where can I buy Vishay K102K15X7RK5TL2R?
You can click on the BUY or RFQ button to purchase K102K15X7RK5TL2R from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part K102K15X7RK5TL2R?
You can download the K102K15X7RK5TL2R datasheet or visit the Vishay website for support.
Who is the manufacturer of K102K15X7RK5TL2R?
Vishay
