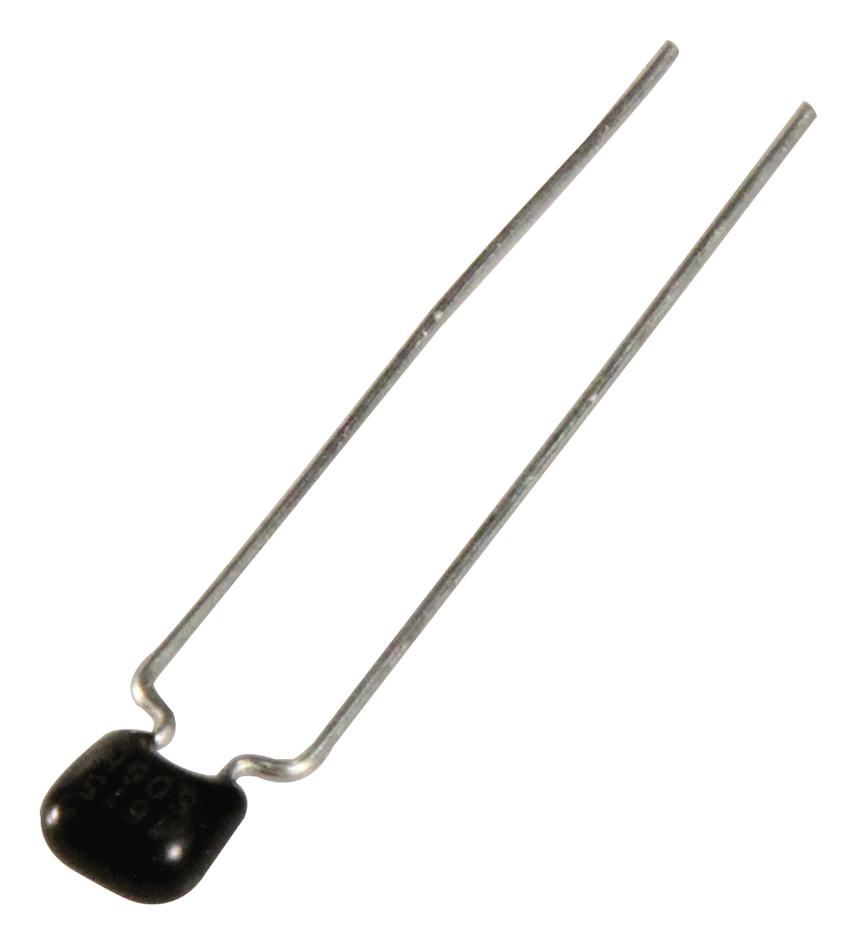

Vishay K105K20X0UF63H5H High Temperature Ceramic Capacitor
This high-temperature ceramic capacitor is designed for automotive applications, offering reliable performance up to 200°C for 500 hours and unlimited time at 175°C. It features Class 1 COG dielectric X7R/XOU with capacitance ranges from 100 pF to 1,000,000 pF (1 μF), and rated voltages of 50 V, 100 V, and 200 V. The radial leaded MLCC construction ensures high reliability, with lead diameters of 0.5 mm or 0.6 mm, and flame-retardant epoxy coating complying with UL 94 V-0. Ideal for demanding automotive environments requiring stable capacitance over temperature and voltage derating above 150°C.
Vishay K105K20X0UF63H5H High Temperature Ceramic Capacitor Specifications:
- Dielectric: Class 1 COG, X7R/XOU
- Rated Voltage: 50 V, 100 V, 200 V
- Capacitance Range: 100 pF to 1,000,000 pF (1 μF)
- Temperature Range: -55°C to +175°C (unlimited), up to 200°C for 500 hours
- Capacitance Tolerance: +5 %, +10 %, +20 %
- Lead Diameter: 0.5 mm or 0.6 mm
- Lead Style: Straight or crimped leads, lead spacing 2.5 mm or 5.0 mm
- Coating: Flame-retardant epoxy resin UL 94 V-0
- Climatic Category: 55/125/21
- Disipation Factor: Max. 0.1 % for Class 1; Max. 2.5 % for Class 2
- Insulation Resistance: ≥10 GΩ at rated voltage, within 2 minutes
- Approval: EIA 198, IEC 60384 standards, AEC-Q200 qualified
- Size Codes: 15, 20, with specific dimensions for lead length and height
- Marking: Capacitance value and tolerance in accordance with EIA 198
- Packaging: Reels, tape, bulk packaging, with specified dimensions and exposure of component details
Buy the Vishay Series KH High Temperature Ceramic Capacitors: K105K20X0UF63H
Purchase the Vishay Series KH ceramic capacitor online today to benefit from superior quality, reliable high-temperature performance up to 200°C, and compliance with automotive standards. Whether for demanding automotive, industrial, or electronic applications, this MLCC offers excellent stability across temperature ranges, with rated voltages from 50 V to 200 V and capacitance options up to 1 μF. Its flame-retardant epoxy coating and high reliability construction ensure durability, making it an essential choice for professionals seeking dependable, high-performance ceramic capacitors in their projects.
Order your Vishay Series KH high-temperature ceramic capacitor today and ensure high reliability and stable performance in automotive environments.
Frequently Asked Questions
Where can I buy Vishay K105K20X0UF63H5H?
You can click on the BUY or RFQ button to purchase K105K20X0UF63H5H from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part K105K20X0UF63H5H?
You can download the K105K20X0UF63H5H datasheet or visit the Vishay website for support.
Who is the manufacturer of K105K20X0UF63H5H?
Vishay
