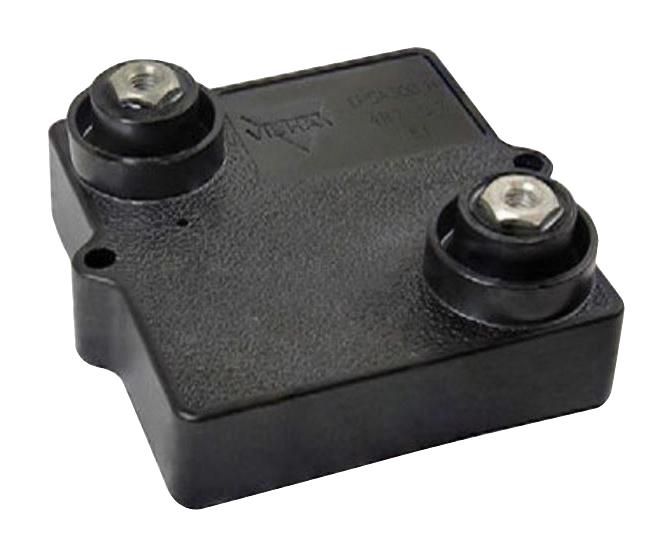

Vishay LPSA300H10R0JB High Power Resistor
The high power resistor is designed for mounting onto heatsinks, featuring thick film technology and a power rating of 800 W at 85 °C. Compliant with AEC-Q200, RoHS, and NF-EN45545-2 standards, it offers a wide resistance range from 0.3 Ω to 900 kΩ in the E24 series. Its non-inductive construction ensures minimal thermal radiation, making it ideal for automotive precharge and discharge applications requiring high performance, durability, and efficient heat dissipation in challenging environments.
Vishay LPSA300H10R0JB High Power Resistor Specifications:
- Power Rating: 800 W at +85 °C bottom case temperature
- Resistance Range: 0.3 Ω to 900 kΩ (E24 series)
- Material: Thick film technology, alumina substrate
- Mechanical Size: approximately 25.8 mm x 57 mm
- Thermal Resistance: Rs: 0.112 °C/W; R<10: 300 ppm/°C; R>10: 150 ppm/°C
- Environmental Ratings: RoHS, NF-EN45545-2, AEC-Q200 qualified
- Maximum Operating Temperature: -85 °C to +175 °C
- Insulation Resistance: >10^6 MΩ
- Dielectric Strength: 7 kV (short-term), 12 kV (lightning test)
Buy the Vishay Series LPSA High Power Resistor: 800 W 0.3Ω-900kΩ
Purchase the Vishay Series LPSA high power resistor online today to ensure your projects benefit from reliable, durable, and high-capacity electrical components. Designed for demanding automotive and industrial environments, this 800 W resistor features thick film technology and a wide resistance range of 0.3 Ω to 900 kΩ. Its compliance with RoHS, NF-EN45545-2, and AEC-Q200 makes it ideal for precharge and discharge applications. Easy to mount onto heatsinks with thermal grease or pads, it guarantees efficient heat dissipation and long-term performance. Order now for fast delivery and best pricing.
Order your Vishay Series LPSA 800 W resistor today and equip your automotive or industrial project with high-performance, reliable power components.
Frequently Asked Questions
Where can I buy Vishay LPSA300H10R0JB?
You can click on the BUY or RFQ button to purchase LPSA300H10R0JB from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part LPSA300H10R0JB?
You can download the LPSA300H10R0JB datasheet or visit the Vishay website for support.
Who is the manufacturer of LPSA300H10R0JB?
Vishay
