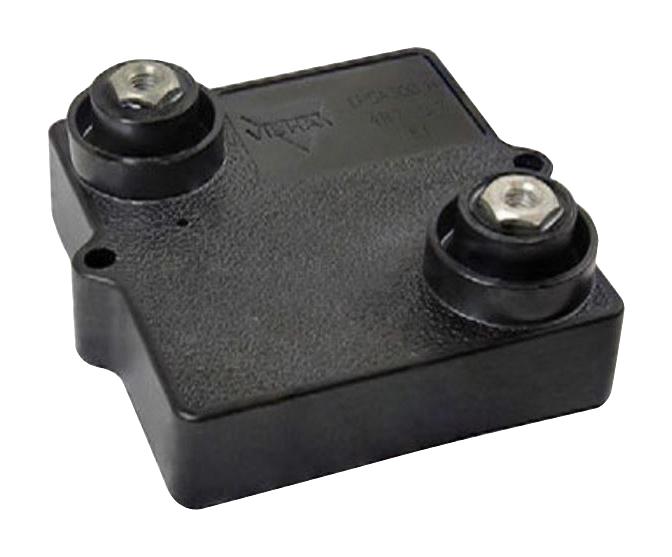

Vishay LPSA800H1000JB Power Resistor
The high power resistor for mounting onto heatsinks offers 800 W power at 85°C, utilizing thick film technology. Its wide resistance range from 0.3 Ω to 900 kΩ suits automotive precharge and discharge applications. Compliant with RoHS and NF-EN45545-2 standards, it features a non-inductive design, easy mounting with screw connections, and low thermal radiation. Mechanical details include a durable insulated case, alumina substrate, and M4 screw connections. It is resistant to thermal, humidity, vibration, and electrical stresses, making it ideal for demanding industrial and automotive environments.
Vishay LPSA800H1000JB Power Resistor Specifications:
- Power Rating: 800 W at 85°C bottom case temperature
- Resistance Range: 0.3 Ω to 900 kΩ
- Resistance Coefficient: 150, 300, 500, 1000 ppm/°C
- Temperature Range: -85°C to 175°C
- Thermal Resistance: 0.112°C/W
- Dielectric Strength: 7 kV, 12 kV for tested models
- Insulation Resistance: >10 MΩ
- Inductance: <0.1 μH
- Maximum Torque: 2 Nm
- Weight: approx. 39 g
- Mechanical Protection: UL 94 V-0 insulated case
- Environmental Tests: Temperature cycling, humidity, vibration, shock
Buy the Vishay Series LPSA Power Resistor: 800W at 85°C, 0.3Ω-900kΩ
Purchase the Vishay Series LPSA 800 Power Resistor online now to ensure your projects benefit from high power capacity, robust thermal and electrical performance, and compliance with industry standards. Ideal for automotive precharge, discharge applications, and industrial uses requiring reliable, long-lasting components. Our high-quality resistors are easy to mount, feature a durable insulated case, and resist environmental stresses such as vibration, humidity, and temperature fluctuations. Get your resilient, high-power resistor today for optimal project performance and dependability.
Order your Vishay Series LPSA 800 Power Resistor today and equip your automated, industrial, or automotive project with reliable high-power performance.
