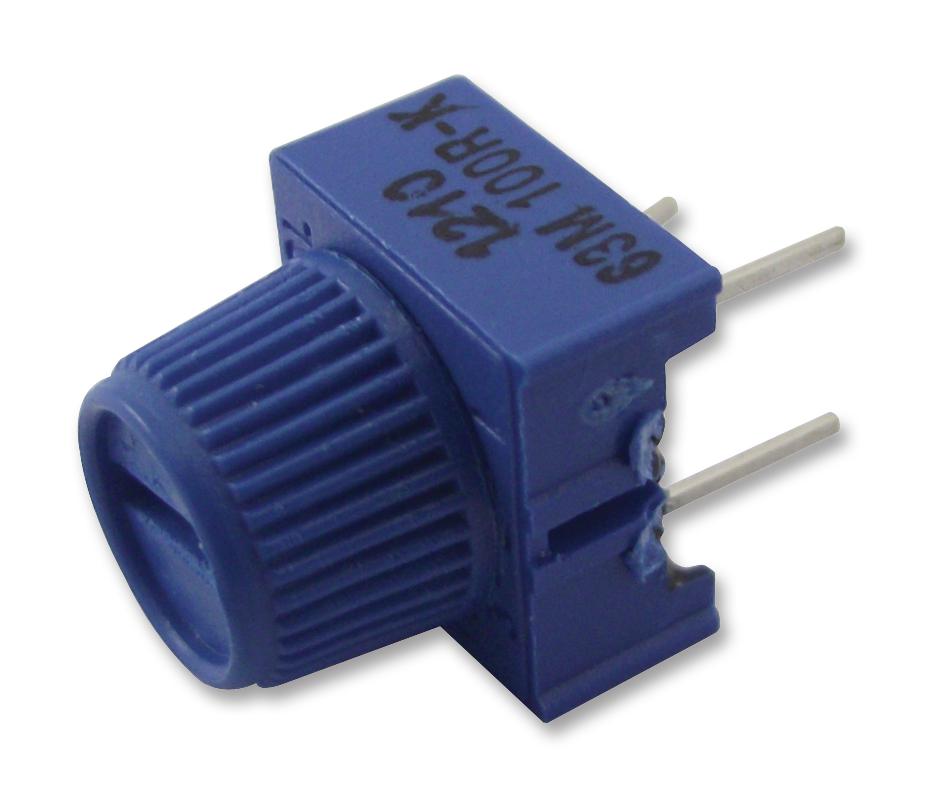

Vishay M63M105KB30T607 Single-turn cermet trimmer
The Vishay Spectrol Model 63P is a compact, reliable 3/8-inch square single-turn cermet trimmer designed for precise adjustments in electronic circuits. Featuring an arrow and graduations for repeatability, an "O" ring seal for solvent and aqueous washing, and a multi-finger wiper for better contact resistance, it complies with RoHS standards. Available in various pin configurations and knob styles, it offers resistance ranges from 100Ω to 2MΩ with ±10% tolerance, suitable for industrial and electronic applications demanding accuracy and durability.
Vishay M63M105KB30T607 Single-turn cermet trimmer Specifications:
- Effective travel: 270° nominal
- Resistance range: 100Ω to 2MΩ
- Resistance tolerance: ±10%
- End resistance: 2Ω or 1% (whichever is greater)
- Temperature coefficient: +100 ppm/°C
- Power rating: 0.5W at +70°C, derated to 0W at 125°C
- Maximum voltage: 250V
- Dielectric withstand voltage: 1000 Vac at sea level
- Insulation resistance: 1000 MΩ minimum
- Mechanical travel: 300° +50
- Starting torque: 35 mNm max
- Weight: 0.85g
- Environmental temp range: -55°C to +125°C
- Sealing: IP64
- Climatic category: 56/125/21
- Vibration: 98 m/s², 10Hz to 500Hz
- Mechanical life: 200 cycles
- Terminal strength: 1 kg minimum
Buy the VISHAY M63M105KB30T607 – Reliable Potentiometer for Industrial Applications
Order the Vishay M63M105KB30T607 online today to benefit from high-precision, sealed cermet trimmer with broad resistance range and robust construction. Ideal for industrial electronics needing accurate, repeatable adjustments. With a 270° travel and IP64 sealing, this trimmer ensures durability and reliable performance in harsh environments. Purchase now and enhance your electronic device’s accuracy with Vishay’s trusted quality and quick online delivery. Perfect for circuit tuning, calibration, and other electronic applications requiring precise resistance adjustment.
Buy Vishay M63M105KB30T607 now and experience unmatched reliability and performance for precise electronic adjustments.
