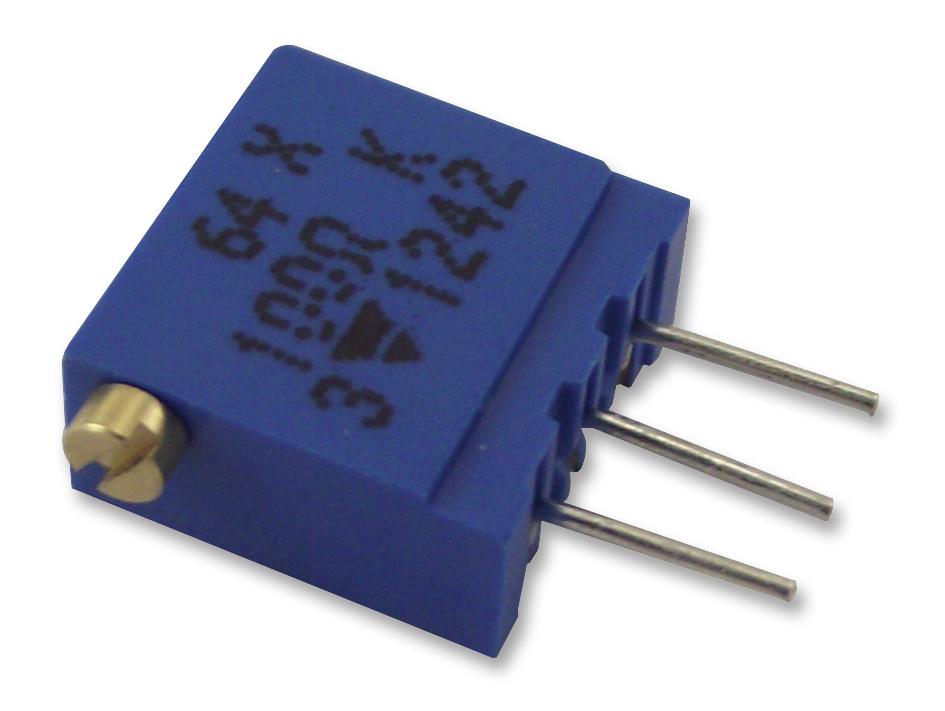

Vishay M64X202KB40 Multi-turn Cermet Trimmer
The Vishay Spectrol Model 64 is a compact, multi-turn cermet trimmer designed for precise PC board adjustments. Measuring 3/8 inch square, it features five different versions with various screw and terminal positions, optimized for industrial applications requiring stable resistance and durability. The device offers resistance ranges from 10Ω to 2.2MΩ, with power ratings of 0.5W at 70°C, fully sealed with IP67 protection, and operating temperature limits from -55°C to +125°C. Its robust construction ensures reliable performance in demanding environments.
Vishay M64X202KB40 Multi-turn Cermet Trimmer Specifications:
- Dimensions: 3/8 inch x 3/8 inch x 3/16 inch
- Resistance Range: 10Ω to 2.2MΩ
- Power Rating: 0.5W at 70°C
- Temperature Range: -55°C to +125°C
- Sealing: Fully sealed IP67
- Mechanical Travel: 23 turns ±5
- Terminal Spacing: 2.54 mm
- Contact Resistance Variation: <2%
- Insulation Resistance: 10^6 Ω at 600 V
- Dielectric Strength: 1000 V RMS
- Material: Cermet resistive element, pure Sn terminals
- Ambient Humidity: Climatic category 55/125/56
Buy the Vishay M64X202KB40 – Reliable Multi-Turn Cermet Trimmer for Industrial Applications
Enhance your industrial calibration projects with the Vishay Spectrol multi-turn cermet trimmer. Designed for precise resistance adjustments, it offers IP67 sealing, a wide resistance range from 10Ω to 2.2MΩ, and a robust construction that withstands harsh environments. With a compact size of 3/8 inch and operating temperature from -55°C to +125°C, this trimmer ensures durability and stability in demanding applications. Perfect for PC board mounting, it provides reliable performance for engineers and technicians seeking quality and precision.
Buy Vishay M64X202KB40 now and experience unmatched reliability and high-precision resistance adjustment for demanding industrial environments.
Frequently Asked Questions
Where can I buy Vishay M64X202KB40?
You can click on the BUY or RFQ button to purchase M64X202KB40 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part M64X202KB40?
You can download the M64X202KB40 datasheet or visit the Vishay website for support.
Who is the manufacturer of M64X202KB40?
Vishay
