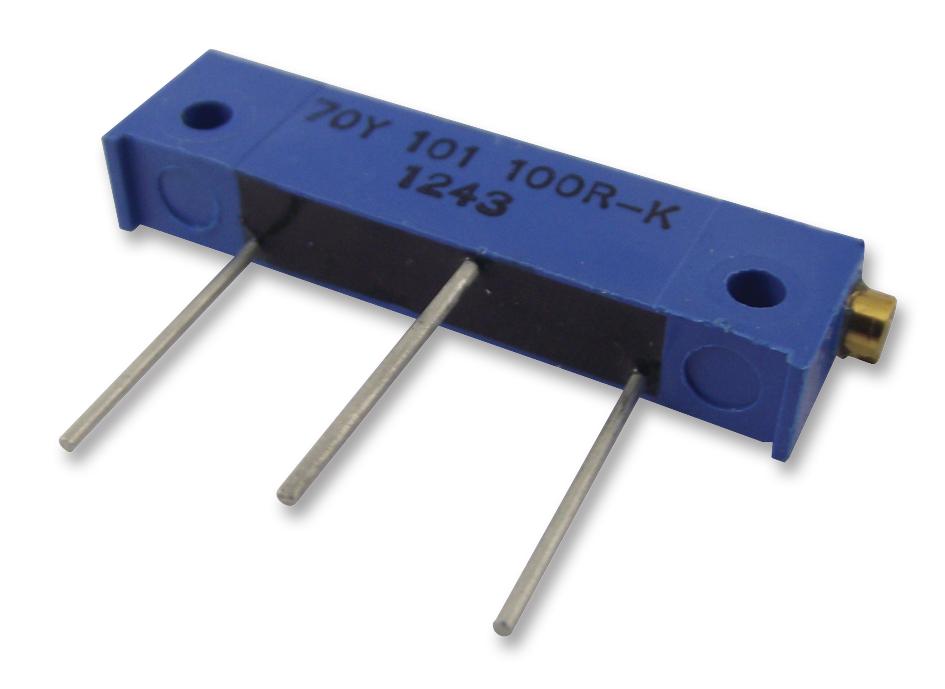

Vishay M70Y502KB25 Cermet Trimmer
The Vishay Spectrol turn cermet trimmer features a compact 1 1/4-inch rectangular design with a resistance range from 10Ω to 2MΩ, suitable for precision applications. It offers 0.5 W power rating at 70°C, with a unique T-slider block for adjustable calibration. Its sturdy construction includes wire leads (6-inch insulated AWG 28), sealed housing for easy cleaning, and mechanical durability with a maximum torque of 5 oz. in. It provides reliable electrical performance with a dielectric withstand voltage of 1000 Vac, and operates effectively across -55°C to +125°C. Ideal for precision control in electronic circuits.
Vishay M70Y502KB25 Cermet Trimmer Specifications:
- Resistance range: 10Ω to 2MΩ
- Power rating: 0.5 W at 70°C
- Resistance tolerance: 10%
- End resistance: 2% maximum
- Electrical travel: 20 turns nominal
- Contact resistance variation: 3% or 3Ω, whichever is greater
- Dielectric withstand voltage: 1000 Vac at sea level
- Insulation resistance: 1000 MΩ
- Operating temperature range: -55°C to +125°C (leadwire style 100°C)
- Maximum operating torque: 5 oz. in
- Rotational life: 200 load cycles, 500 unloaded cycles
- Terminal material: Pure Sn (code 3)
- Weight: 0.116 oz. (3.3 g)
- Sealed for cleaning in solvents
- Climatic category: 55/125/21
Buy the Vishay Series Spectrol Cermet Trimmer: M70Y502KB25
Purchase the Vishay Series Spectrol Cermet Trimmer M70Y502KB25 online today and enhance your electronic control systems. This precision component delivers a resistance range from 10Ω to 2MΩ, with a 0.5 W power rating suitable for demanding applications. Its sealed design ensures durability and easy cleaning, while the wire leads and compact rectangular shape simplify integration into tight spaces. Operating across -55°C to +125°C, this trimmer offers exceptional stability, high reliability, and consistent electrical performance, making it an essential part for engineers and technicians seeking quality and accuracy.
Order your Vishay Series Spectrol Cermet Trimmer M70Y502KB25 today and equip your electronic projects with high-quality, reliable adjustable components.
Frequently Asked Questions
Where can I buy Vishay M70Y502KB25?
You can click on the BUY or RFQ button to purchase M70Y502KB25 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part M70Y502KB25?
You can download the M70Y502KB25 datasheet or visit the Vishay website for support.
Who is the manufacturer of M70Y502KB25?
Vishay
