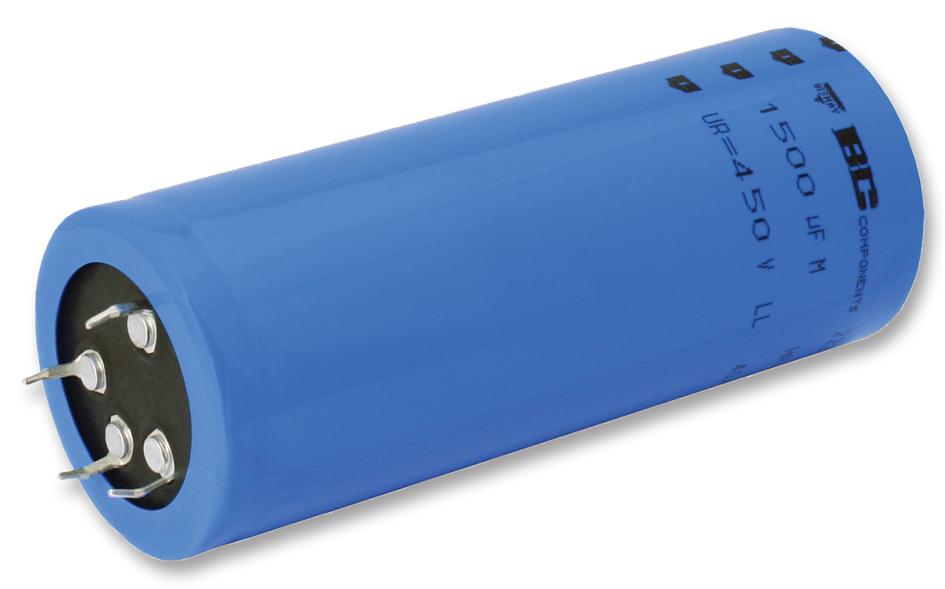

Vishay MAL209615152E3 aluminum electrolytic capacitor
The 096 PLL-4TSI is a long-life, four-terminal aluminum electrolytic capacitor designed for high ripple current and thermal stability up to 85°C. It features a cylindrical aluminum case, RoHS compliance, and pressure relief on the side. Suitable for telecommunications, industrial systems, and power supplies, it offers low ESR and a useful life of 5000 hours at 85°C. Available in various sizes with ratings up to 2700µF and voltage up to 420V, it provides reliable filtering and energy storage in demanding environments.
Vishay MAL209615152E3 aluminum electrolytic capacitor Specifications:
- Nominal case size: 35 x 50 mm to 45 x 100 mm
- Rated capacitance range: 390 µF to 2700 µF
- Rated voltage: Up to 420 V
- Temperature range: -55°C to +85°C
- Useful life: 5000 hours at 85°C
- Ripple voltage max: 12V
- Climatic category: IEC 60068 40/085/56
- Physical dimensions and mounting hole locations vary by size
- Material: Aluminum case with insulated blue sleeve
- Pressure relief on side of case, circular cylindrical aluminum case
- Four-terminal snap-in design with keyed polarity, positive terminal pin 1
- Leakage current: < 0.006 Cp x Up after 1 min, < 0.002 Cp x Up after 5 min
- ESR: Low, with high ripple current capability
- Impedance at 10 kHz: Specified in electrical data
Buy the Buy Vishay Aluminum Electrolytic Capacitors Part Number MAL209615152E3 Online
Purchase the Vishay aluminum electrolytic capacitor online to ensure reliable power filtering and energy storage in industrial and telecommunication systems. Designed for stability up to 85°C, it offers long service life of 5000 hours, low ESR, and high ripple current capacity. Available in various sizes and capacitance ratings, this RoHS-compliant component is ideal for power supplies, energy storage, and pulse systems, providing consistent performance in high-demand environments. Easy to mount and suitable for demanding technical applications.
Buy Vishay MAL209615152E3 now and experience unmatched reliability and high ripple current performance in demanding electronic applications.
Frequently Asked Questions
Where can I buy Vishay MAL209615152E3?
You can click on the BUY or RFQ button to purchase MAL209615152E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL209615152E3?
You can download the MAL209615152E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL209615152E3?
Vishay
