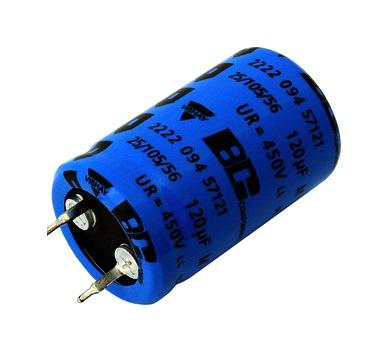

Vishay MAL209436471E3 Aluminum Electrolytic Capacitors
These aluminum electrolytic capacitors are designed for power applications requiring long life and reliable operation. Measuring 22x25 to 35x60 mm, they support voltages up to 450V and capacitance values from 56µF to 2200µF. Features include a useful life of 2000 hours at 105°C, RoHS compliance, and cylindrical aluminum cases with insulated blue sleeves for durability. Suitable for consumer electronics, telecom equipment, electronic drives, and SMPS/UPS systems, they deliver low ESR, high ripple current capacity, and robust performance in demanding industrial environments.
Vishay MAL209436471E3 Aluminum Electrolytic Capacitors Specifications:
- Capacitance Range: 56µF to 2200µF
- Rated Voltage: up to 450V
- Dimensions: 22x25 mm to 35x60 mm
- Useful Life: 2000 hours at 105°C
- Operating Temperature: -25°C to +105°C
- Endurance Test: 2000 hours at 105°C
- Ripple Current Max: 12V RMS at 105°C
- ESR Max at 120Hz: Varies with size, typically below 0.5Ω
- Leakage Current: ≤ 0.02 C x Up after 5 minutes at Un
- ESL: Typical 19 nH, Max 25 nH
- Mounting: Snap-in, cylindrical aluminum case with blue sleeve
- RoHS Compliant, categorized as non-solid electrolyte aluminum electrolytic capacitor
Buy the Vishay 094 PME-SI – Reliable Aluminum Electrolytic Capacitors for Industrial Applications
Order Vishay 094 PME-SI aluminum electrolytic capacitors online today and benefit from superior power handling, long-term reliability, and easy integration into your power supply, telecom, or industrial applications. With a broad capacitance range up to 2200µF and voltage ratings up to 450V, these capacitors offer excellent ripple current capacity and low ESR for demanding environments. Their durable cylindrical aluminum case with insulating blue sleeve makes installation straightforward and reliable, ensuring stable performance over extended operational life. Purchase now and enhance your device’s power stability!
Buy Vishay 094 PME-SI aluminum electrolytic capacitors now and ensure power stability and long life in your industrial, telecom, or electronics projects.
Frequently Asked Questions
Where can I buy Vishay MAL209436471E3?
You can click on the BUY or RFQ button to purchase MAL209436471E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL209436471E3?
You can download the MAL209436471E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL209436471E3?
Vishay
