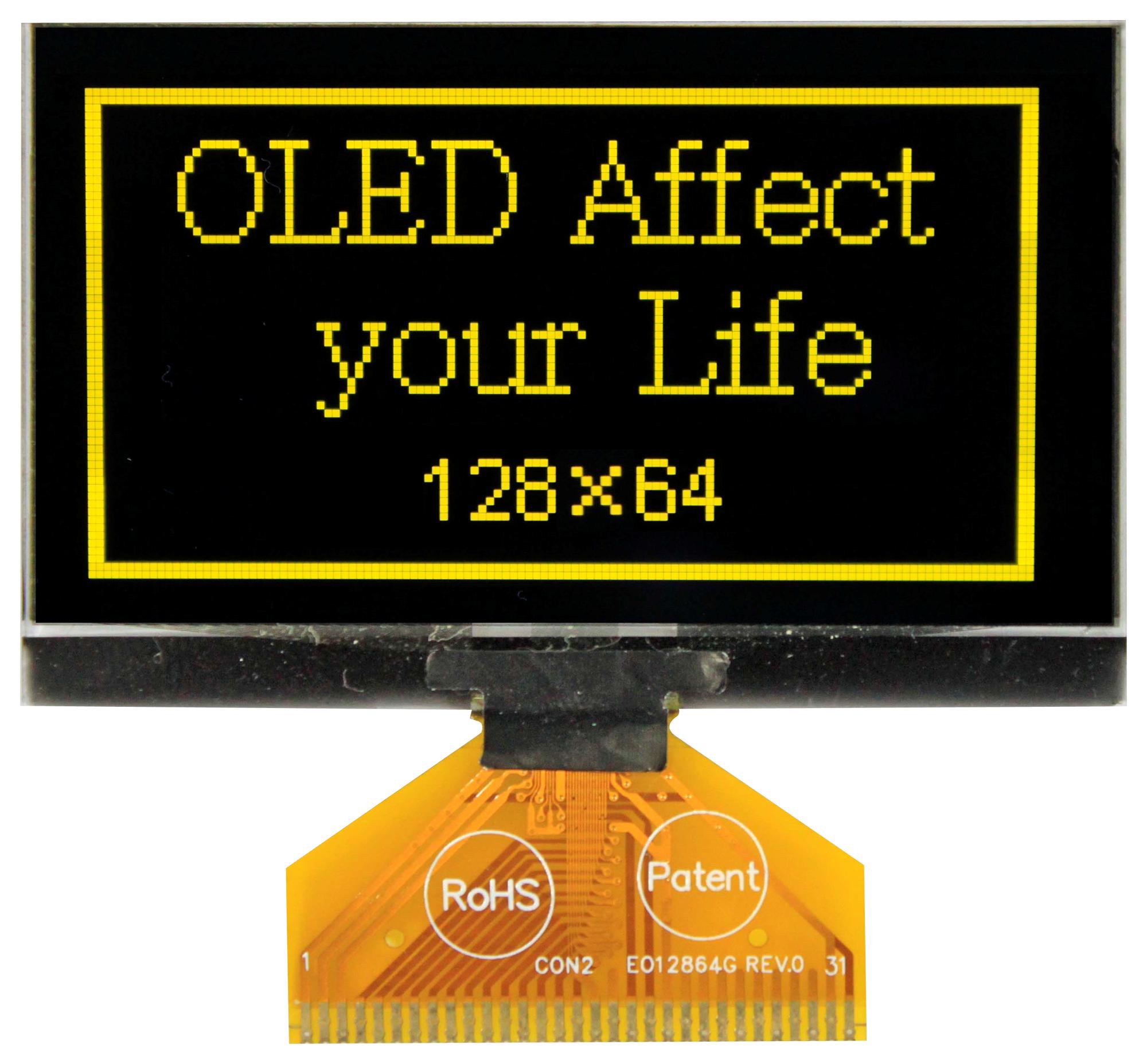

Vishay O128O064HLPP3N0000 OLED Graphic Display
The O128O064HLPP3N0000 from Vishay is a yellow-emitting OLED graphic display module featuring a 128 x 64 dot COG (Chip on Glass) configuration. It includes a built-in SSD1309ZC controller, operates at a 3V driver voltage, and has a duty cycle of 1/64. The module dimensions are 60.5mm x 37mm x 2.15mm, with a viewing area of 57.01mm x 28.91mm and an active display area of 55.01mm x 27.49mm. Each dot measures 0.4mm x 0.4mm with a pitch of 0.43mm x 0.43mm. It features a polarized passive matrix design and is suitable for imaging, video, and vision applications.
Vishay O128O064HLPP3N0000 OLED Graphic Display Specifications:
- Display Format: 128 x 64 dots
- Module Dimensions: 60.5mm x 37.0mm x 2.15mm
- Active Area: 55.01mm x 27.49mm
- Dot Size: 0.40mm x 0.40mm
- Pixel Pitch: 0.43mm x 0.43mm
- Display Mode: Passive Matrix
- Display Color: Monochrome Yellow
- Drive Duty: 1/64
- Operating Temperature: -40°C to +80°C
- Storage Temperature: -40°C to +80°C
- Supply Voltage for Logic: 3.0V
- Supply Voltage for Display: 12V to 15V
- Built-in Controller: SSD1309ZC
- Polarizer: With Polarizer
- Material: Chip on Glass (COG) Technology
Buy the Buy Vishay OLED-1280064H-LPP3N0000 Part Number 1280064H-LPP3N0000 Online
Purchase the Vishay OLED graphic display module with 128x64 dots, 3V operation, and built-in SSD1309 controller. Perfect for imaging, video, and vision systems, this passive matrix display features a polarized surface, a compact size, and high durability. Easily integrate into your project and benefit from proven quality and performance. Buy online today to enhance your electronic and display device solutions with this reliable OLED module.
Buy Vishay OLED-1280064H-LPP3N0000 now and experience unmatched reliability and performance for your imaging and display needs.
Frequently Asked Questions
Where can I buy Vishay O128O064HLPP3N0000?
You can click on the BUY or RFQ button to purchase O128O064HLPP3N0000 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part O128O064HLPP3N0000?
You can download the O128O064HLPP3N0000 datasheet or visit the Vishay website for support.
Who is the manufacturer of O128O064HLPP3N0000?
Vishay
