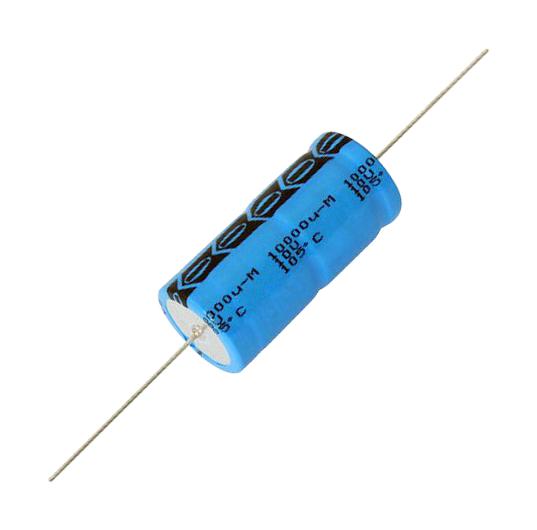

Vishay MAL212518222E3 Aluminum Electrolytic Capacitor
The 125 ALS series axial miniature aluminum electrolytic capacitor features a long service life and is designed for industrial, automotive, electronic data processing (EDP), and telecommunication applications. It is suitable for smoothing, filtering, and buffering in switched-mode power supplies (SMPS), as well as for coupling, decoupling, and timing functions. This series is ideal for portable and mobile equipment due to its small size and low weight, making it suitable for stand-by applications and low-profile circuit boards. The capacitor is a polarized, non-solid electrolyte type with axial leads, housed in a cylindrical aluminum case with a blue insulation sleeve. Taped versions for automatic insertion are available up to ø 15mm x 30mm. It is charge and discharge proof, offers a long operational lifespan of 5,000 to 10,000 hours at 105°C, and has high reliability and ripple current capability. The capacitor maintains a shelf life of 500 hours at 0V and 105°C and is resistant to climatic variations, vibration, and shock.
Vishay MAL212518222E3 Aluminum Electrolytic Capacitor Specifications:
- Capacitance Range: 27 UF to 18,000 pF
- Rated Voltage Range: 10 V to 63 V
- Temperature Range: -40°C to +105°C
- Endurance: 5,000 to 10,000 hours at 105°C
- Shelf Life: 500 hours at 0 V and 105°C
- RoHS Compliant
- Mounting: Axial leads, housed in cylindrical aluminum case
- Available forms: Axial in box (Form AA), taped on reel (Form BR), taped in box (Form BA), with mounting ring options
- Charge/Discharge Proof: Yes
- Ripple Current Capability: High ripple current
- Marking: Capacitance, voltage, tolerance, date code
- Climatic Category: IEC 60068 40/105/56
- Physical dimensions: ø 6.5mm x 18mm up to ø 21mm x 38mm, various case sizes listed
- Mounting options include with mounting rings for severe shocks and vibrations
Buy the Vishay 125 ALS U– Reliable Aluminum Electrolytic Capacitors for Industrial Applications
Purchase the Vishay 125 ALS series aluminum electrolytic capacitor online today for dependable performance in industrial, automotive, and communication systems. With a long useful life of up to 10,000 hours at 105°C, high ripple current capability, and robust design, these capacitors are ideal for smoothing, filtering, and buffering in SMPS and portable devices. Easily available in various sizes and forms, order now to enhance your project’s reliability and efficiency with premium electronic components that are designed to withstand harsh environments and vibration.
Order your Vishay Series 125 ALS aluminum electrolytic capacitor today and ensure long-lasting reliability in your industrial and automotive projects.
Frequently Asked Questions
Where can I buy Vishay MAL212518222E3?
You can click on the BUY or RFQ button to purchase MAL212518222E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL212518222E3?
You can download the MAL212518222E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL212518222E3?
Vishay
