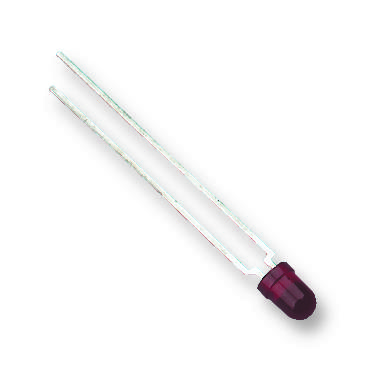

Vishay TLHR4401 High-efficiency indicator LED
The TLHR4401 is a high-efficiency LED designed for both DC operation and high peak current applications. It features a 3mm tinted diffused plastic package, making it suitable for general indication uses. The LED offers a wide viewing angle, providing high contrast between ON and OFF states. It is categorized by wavelength groups to ensure uniform appearance across similar devices. This LED is ideal for various applications including status indicators, background illumination, readout lights, maintenance lighting, and legend lighting. Its technology is based on GaAsP on GaP, ensuring small mechanical tolerances and consistent luminous intensity. It is a halogen-free, environmentally friendly product suitable for signaling and lighting applications.
Vishay TLHR4401 High-efficiency indicator LED Specifications:
- Package: 3 mm tinted diffused plastic
- Luminous Intensity: 25 to 63 mcd depending on model
- Wavelength: 504 to 625 nm depending on model and color
- Forward Voltage: 2.0 to 3.0 V at 20 mA
- Reverse Voltage: 6 V
- DC Forward Current: 30 mA
- Peak Surge Forward Current: 1 A (10 us)
- Operating Temperature: -40 to +100 °C
- Storage Temperature: -55 to +100 °C
- Junction Temperature: 100 °C
- Power Dissipation: 100 mW
- Thermal Resistance Junction/Ambient: 400 K/W
- Viewing Angle: ±30°
- Technology: GaAsP on GaP
- Certifications: RoHS compliant
- Soldering Temperature: 260 °C for <5 s
Buy the VISHAY TLHR4401 Reliable Indicator LED for Industrial Applications
Purchase the VISHAY TLHR4401 LED online today and ensure robust, energy-efficient lighting for your industrial and consumer applications. With its wide viewing angle and categorised wavelengths, this LED guarantees uniform appearance and high contrast for status lights, background illumination, and readout indicators. Its GaAsP on GaP technology delivers small tolerances and consistent luminous intensity, making it suitable for high peak current applications. Enjoy fast, secure online ordering and integrate this halogen-free, RoHS compliant LED into your projects for durable, high-quality performance.
Order your VISHAY TLHR4401 high-efficiency LED today and enhance your indicator and lighting systems with reliable, environmentally friendly performance.
Frequently Asked Questions
Where can I buy Vishay TLHR4401?
You can click on the BUY or RFQ button to purchase TLHR4401 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part TLHR4401?
You can download the TLHR4401 datasheet or visit the Vishay website for support.
Who is the manufacturer of TLHR4401?
Vishay
