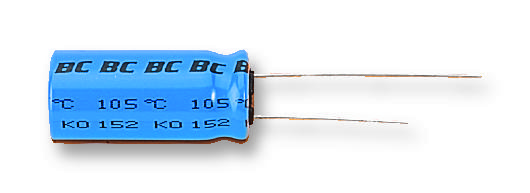

Vishay MAL224658471E3 High-Temperature Aluminum Capacitor
High-temperature aluminum electrolytic capacitor designed for power supply filtering and smoothing applications in industrial, automotive, telecommunications, and military equipment. Offers long life up to 6000 hours at 125°C, high ripple current capacity, and excellent vibration resistance up to 50 g. Features radial leads, cylindrical aluminum case, and a blue PET sleeve insulation. Suitable for environments requiring stability, reliability, and RoHS compliance, these polarized capacitors are ideal for demanding electronic and power systems.
Vishay MAL224658471E3 High-Temperature Aluminum Capacitor Specifications:
- Nominal case size: 18 x 35 mm
- Rated capacitance: 6800 μF with 20% tolerance
- Rated voltage: 63 V
- Category temperature range: -55°C to +125°C
- Endurance: 5000-6000 hours at 125°C
- Useful life: 4000-6000 hours at 125°C
- Leakage current: 12 μA max after 2 min at Up
- Dissipation factor: Max. tan δ 0.22 at 100 Hz
- Impedance: Max. Z at 100 kHz, 0.108 Ω
- Vibration resistance: Up to 50 g
- RoHS compliant, AEC-Q200 qualified
- Radial leads with cylindrical aluminum case, insulated with blue PET sleeve
Buy the Vishay Series RTI-V Aluminum Electrolytic Capacitor: MAL224658471E3
Buy the Vishay Series RTI-V aluminum electrolytic capacitor online now to benefit from superior quality, high vibration resistance, and extended life up to 6000 hours at 125°C. Perfect for demanding industrial, automotive, and telecommunication applications needing stable filtering and smoothing. With a robust cylindrical aluminum case, radial leads, RoHS compliance, and high ripple current capacity, this capacitor is designed for long-term reliability. Secure your electronic power systems and ensure optimal performance by ordering today through our convenient online platform.
Order your Vishay Series RTI-V 6800 microfarad 63-volt aluminum electrolytic capacitor today and ensure your power systems operate with high reliability and stability.
Frequently Asked Questions
Where can I buy Vishay MAL224658471E3?
You can click on the BUY or RFQ button to purchase MAL224658471E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL224658471E3?
You can download the MAL224658471E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL224658471E3?
Vishay
