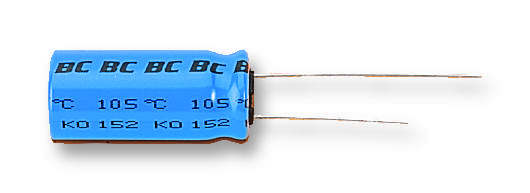

Vishay MAL216055221E3 Aluminum Electrolytic Capacitor
Vishay BCcomponents presents high-temperature aluminum electrolytic capacitors designed for industrial, automotive, telecommunications, and military applications. With a useful life of up to 2000 hours at 150 °C, these polarized capacitors feature very low ESR, excellent ripple current capacity, and are RoHS compliant. They come with radial leads encased in a cylindrical aluminum case with pressure relief, insulated with a blue PET sleeve. Suitable for smoothing, filtering, buffering, and power supply applications, these reliable capacitors are AEC-Q200 qualified for demanding environments.
Vishay MAL216055221E3 Aluminum Electrolytic Capacitor Specifications:
- Capacitance range: 33 UF to 3300 UF
- Rated voltage: 16 V to 50 V
- Temperature range: -55°C to +150°C
- Useful life: up to 2000 hours at 150°C
- Tolerance: ±20%
- Nominal case sizes: 10 x 12 mm to 18 x 35 mm
- Dimensions: Case sizes vary from 10x12 mm to 18x35 mm with specific max lengths and diameters
- Pressure relief: included in metallic casing
- Material: Cylindrical aluminum case with blue PET sleeve
- RoHS compliant: Yes
- Qualification: AEC-Q200 qualified
- Endurance: 1000 to 1500 hours at 150°C
- Shelf life: 1000 hours at 0 V, 150°C
- Ripple current capacity: High ripple current capability at 100 kHz and 150°C
- Impregnation: Non-solid electrolyte for stable performance
- Certifications: UL, RoHS, AEC-Q200
Buy the Buy Vishay Aluminum Electrolytic Capacitor Part Number MAL216055221E3 Online
Enhance your power supply designs with Vishay Aluminum Electrolytic Capacitors, engineered for high temperature stability, long life up to 2000 hours at 150°C, low impedance, RoHS compliant, and robust performance. Perfect for smoothing, filtering, and buffering in industrial, automotive, telecommunications, and military applications. With a wide range of capacitance values from 33 UF to 3300 UF and voltages up to 50 V, these capacitors are guaranteed to deliver reliable operation in demanding environments. Purchase online today for quick delivery and superior quality.
Order your Vishay Aluminum Electrolytic Capacitor MAL216055221E3 today and ensure your power systems operate reliably under high temperatures with low ESR performance.
