Vishay RCC040249K9FKED Medium Power Chip Resistor
This medium power thick film chip resistor series features a higher power rating and operating voltage compared to standard resistors, making it suitable for automotive, industrial, and telecommunications applications. Manufactured with a high-grade ceramic substrate, resistive layers are laser trimmed for precise value, covered by protective coatings for durability, and finished with pure tin plating for soldering compatibility. These resistors are RoHS compliant, qualified per AEC-Q200, and designed for automatic SMD assembly with resistance tolerance of ±5% and temperature coefficients around 200 ppm/K, ensuring reliable performance across various demanding environments.
Vishay RCC040249K9FKED Medium Power Chip Resistor Specifications:
- Imperial size: 0402
- Metric size code: RR1005M
- Resistance range: 1.0 to 10.0 MΩ; jumper (0.2 Ω)
- Resistance tolerance: ±5%
- Temperature coefficient: approximately 200 ppm/K
- Rated dissipation: 0.125 W
- Operating voltage: 75V AC/DC
- Maximum film temperature: 155°C
- Operating temperature range: -55°C to +155°C
- Dimensions: Length 1.0 ± 0.05 mm, Width 0.5 ± 0.05 mm, Height 0.35 ± 0.05 mm
- Packaging style: Reel with 10,000 to 50,000 units depending on code
- Lead finish: Pure tin on nickel plating, RoHS compliant
- Material: Cermet film layer on ceramic substrate, protected by a dielectric coating
- Qualified to AEC-Q200, suitable for high-reliability automotive applications
- Applied in circuit protection, voltage division, and current measurement with high stability
- Processing compatibility: Suitable for wave, reflow, and vapor phase soldering
- Standards compliance: IEC 60286-3 Tape packaging, RoHS, WEEE, and REACH regulations

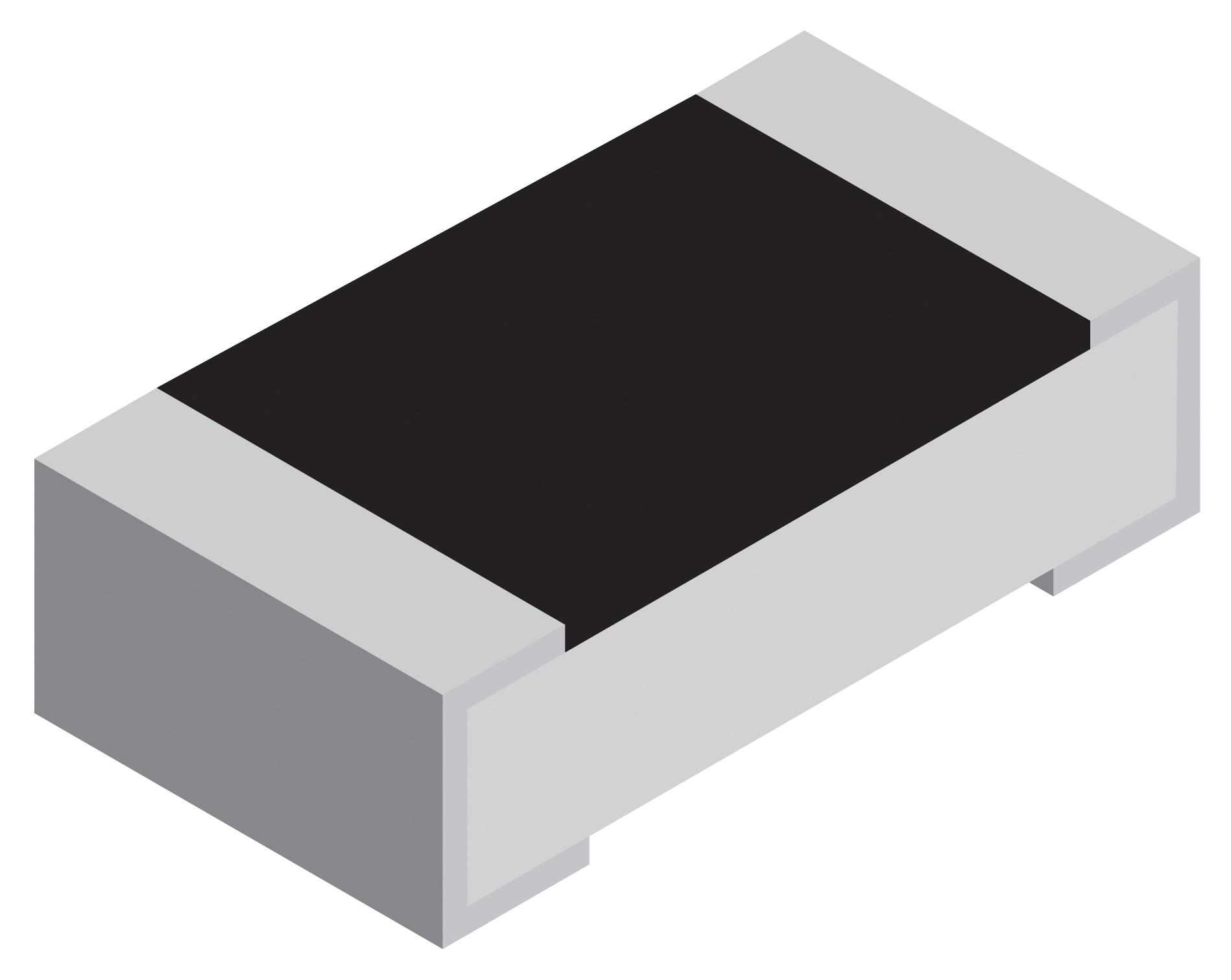

Buy the Buy Vishay RCC0402 e3 Part Number RCC040249K9FKED Online
Purchase Vishay RCC0402 e3 online today to benefit from the highest quality and precise power ratings. Designed for automotive, industrial, and telecom applications, this resistor series offers durability, stability, and RoHS compliance. With easy-to-assemble reel packaging and robust performance across wide temperature and voltage ranges, these resistors ensure your projects meet strict reliability standards. Order now to secure efficient, stable, and compliant resistors that improve your electronic system's longevity and performance, all available with quick delivery and great support.
Buy Vishay RCC0402 e3 now and experience unmatched reliability and performance for high-demand electronic circuits.
Frequently Asked Questions
Where can I buy Vishay RCC040249K9FKED?
You can click on the BUY or RFQ button to purchase RCC040249K9FKED from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part RCC040249K9FKED?
You can download the RCC040249K9FKED datasheet or visit the Vishay website for support.
Who is the manufacturer of RCC040249K9FKED?
Vishay
