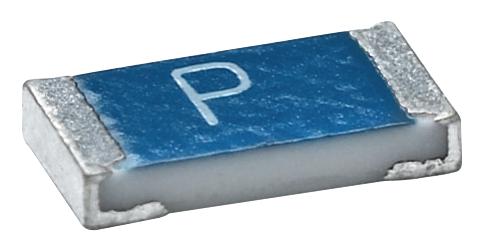

Vishay MFU1206FF00750P100 Thin Film Chip Fuse
MFU Series Thin Film Chip Fuses are high-reliability, very quick acting surface-mount fuses designed for modern electronics such as information technology, industrial, automotive, and medical equipment. They feature advanced thin film technology for outstanding stability and are suitable for automated assembly processes including reflow and wave soldering. These fuses are RoHS compliant, have a protective coating for electrical and mechanical durability, and meet industry standards IEC 60127-1, IEC 60127-4, and UL 248-14, ensuring safety and performance in miniature applications.
Vishay MFU1206FF00750P100 Thin Film Chip Fuse Specifications:
- Size: 1206 (3.2 x 1.6 mm)
- Rated current: 0.1 A to 6.3 A
- Rated voltage: 63 V
- Breaking capacity: 50 A at 32 V or 63 V
- Voltage drop at 1 x In: 115 mV to 433 mV
- Cold resistance at 0.1 x In: 14 mΩ to 660 mΩ
- Operating temperature range: -55°C to 125°C
- Material: Metal alloy deposited on ceramic, tin-plated terminations
- Compliance: RoHS, UL recognized, IEC 60127-4, IEC 60068 series
- Mounting: Suitable for reflow, wave, vapor phase soldering
- Storage life: Up to 20 years, solderability valid for 2 years after manufacturing
- Physical Dimensions: L = 3.2 mm, W = 1.6 mm, H = 0.55 mm (typical)
- Weight: Approximately 76 mg
Buy the Buy Vishay MFU1206FF00750P Online
Order Vishay MFU1206FF00750P online today to ensure your electronic devices have precise, fast-acting circuit protection. Our high-quality surface-mount fuses are ideal for automated manufacturing, providing excellent stability and durability in demanding applications such as automotive, industrial, and medical electronics. RoHS compliant and UL recognized, these fuses meet the strictest safety standards. Enjoy quick delivery, comprehensive datasheets, and expert support to optimize your production line with reliable, high-performance fuses designed for long-term circuit safety.
Buy Vishay MFU1206FF00750P now and experience unmatched reliability and performance in miniature electronic circuit protection.
Frequently Asked Questions
Where can I buy Vishay MFU1206FF00750P100?
You can click on the BUY or RFQ button to purchase MFU1206FF00750P100 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MFU1206FF00750P100?
You can download the MFU1206FF00750P100 datasheet or visit the Vishay website for support.
Who is the manufacturer of MFU1206FF00750P100?
Vishay
