Vishay MFU1206FF01500P100 Thin Film Chip Fuse
MFU 1206 Thin Film Chip Fuse offers rapid response for overcurrent protection in compact electronic circuits. Manufactured with advanced thin film technology, it ensures stable fusing characteristics and high reliability for applications including industrial electronics, telecommunication, and automotive systems. The fuse features a ceramic body with metal alloy film, protective coating, and pure tin plated terminations, providing electrical, mechanical, and climatic protection. It complies with IEC and UL standards, suitable for automated SMD assembly, and resistant to common cleaning solvents, supporting lead-free soldering processes. Its robust design ensures precise, quick acting thermal protection, making it ideal for modern electronic devices demanding space-saving solutions.
Vishay MFU1206FF01500P100 Thin Film Chip Fuse Specifications:
- Size: 3.2 mm x 1.6 mm x 0.55 mm
- Rated Current Range: 0.1 A to 6.3 A
- Rated Voltage: 63 V DC
- Breaking Capacity: 50 A at rated voltage
- Voltage Drop at 1 x In: 174 mV
- Cold Resistance: 76 mΩ at 0.1 x In
- Operating Temperature Range: -55°C to +125°C
- Solderability: 2 years validity post-production
- Compliance: IEC 60127-1, IEC 60127-4, UL 248-14, RoHS, WEEE
- Mounting: Suitable for surface-mount processing, wave, reflow, vapor phase soldering
- Material: Ceramic body, metal alloy film, protective coating, tin-plated termination
- Storage Life: Up to 20 years

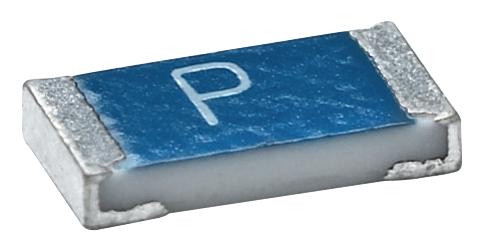

Buy the Buy Vishay MFU1206FF01500P Online
Secure your electronic projects with the Vishay MFU1206FF01500P, a high-quality, fast-acting surface-mount fuse. Designed for modern electronics, it provides precise overcurrent protection in compact 1206 size, complying with industry standards and supporting lead-free processes. Its advanced thin film technology guarantees stable fusing behavior and high reliability, making it suitable for automated assembly. Whether for industrial, telecommunications, or automotive applications, order online now to ensure your circuit's safety and performance with this dependable fuse.
Order your Vishay Series MFU1206FF01500P now and ensure reliable, rapid overcurrent protection for your modern electronics projects.
Frequently Asked Questions
Where can I buy Vishay MFU1206FF01500P100?
You can click on the BUY or RFQ button to purchase MFU1206FF01500P100 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MFU1206FF01500P100?
You can download the MFU1206FF01500P100 datasheet or visit the Vishay website for support.
Who is the manufacturer of MFU1206FF01500P100?
Vishay
