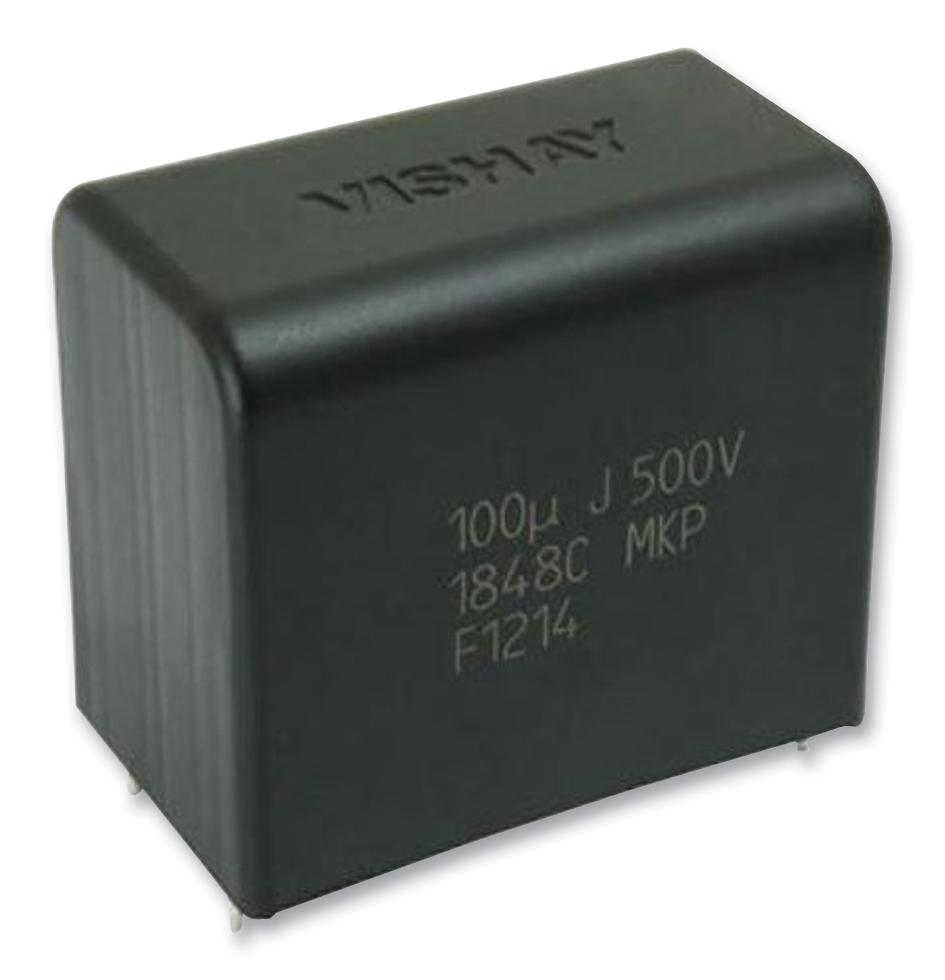

Vishay MKP1848C61050JK2 DC-link Capacitor
Vishay Roederstein MKP1848C is a metallized polypropylene film capacitor designed for high-density DC-link applications. It offers a long lifespan of up to 100,000 hours at 70°C, high ripple current capacity, low ESR and ESL, and temperature stability up to 105°C. Suitable for renewable energy inverters, UPS, battery chargers, and motor drives, it features radial mounting, flame-retardant resin encapsulation, and a wide voltage rating range from 350 V to 1200 V depending on the version, with detailed physical and electrical properties tailored for demanding industrial uses.
Vishay MKP1848C61050JK2 DC-link Capacitor Specifications:
- Dielectric: Metallized polypropylene film
- Construction: Mono, wound cell elements, flame-retardant resin encapsulation
- Capacitance Range: 1 μF to 500 μF
- Rated Temperature: Up to 105°C
- Maximum Case Temperature: 105°C
- Vibration & Shock Resistance: Meets IEC 60068 standards
- Ripple Current Capability: High, low ESR and ESL
- Insulation Resistance: > 10,000 s after 1 min at measuring voltages
- Life Expectancy: > 100,000 hours at Unpc and 70°C
- Voltage Ratings: 350 V to 1200 V depending on model, with specific ratings at 70°C and 85°C
- Mounting: Radial terminals
- Encapsulation: Flame-retardant resin in plastic case
- Self-inductance: <1 nH per mm lead spacing
- Dissipation Factor: Typically low, specific to model
- Standards Compliance: IEC 61071, IEC 60068, RoHS
Buy the Vishay MKP1848C – Reliable DC-Link Capacitor for Industrial Applications
Enhance your power inverter, UPS, or motor drive systems with the Vishay MKP1848C high-voltage polypropylene film capacitor. It provides superior ripple current capability, low ESR/ESL, and a lifespan exceeding 100,000 hours at 70°C, making it ideal for demanding industrial environments. Designed with flame-retardant resin encapsulation and radial mounting, this capacitor ensures reliable operation across a wide temperature range up to 105°C. Trust Vishay for durable, low-loss power components that meet industry standards.
Order your Vishay MKP1848C series high-voltage DC-link capacitor today and ensure your power systems operate with maximum stability and longevity.
Frequently Asked Questions
Where can I buy Vishay MKP1848C61050JK2?
You can click on the BUY or RFQ button to purchase MKP1848C61050JK2 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MKP1848C61050JK2?
You can download the MKP1848C61050JK2 datasheet or visit the Vishay website for support.
Who is the manufacturer of MKP1848C61050JK2?
Vishay
