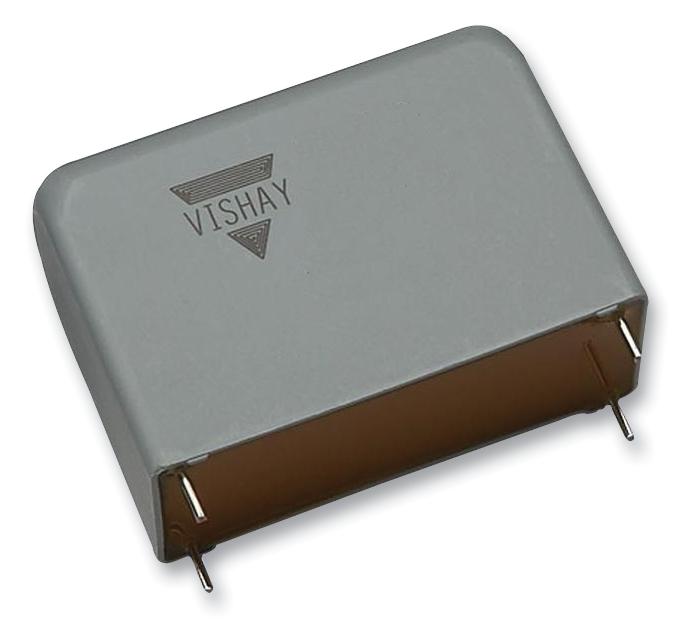

Vishay MKP1848C71060JY5 DC-Link Capacitor
High-performance metallized polypropylene film capacitor designed for DC-link applications in renewable energy, motor drives, UPS, and battery chargers. Features long lifecycle up to 100,000 hours at 70°C, high ripple current capability, low ESR and ESL, and broad voltage ratings up to 1200 V DC at 70°C. Sealed in flame-retardant resin case, mounted radially, with excellent climatic and endurance testing standards. Suitable for demanding inverter and power conversion systems, offering reliable, high-density energy storage with minimal loss and stable performance over extensive operational periods.
Vishay MKP1848C71060JY5 DC-Link Capacitor Specifications:
- Dielectric: Polypropylene film
- Construction: Mono wound cell elements, resin-sealed flame-retardant case
- Capacitance range: 1 μF to 500 μF
- Rated temperature: 85°C
- Maximum case temperature: 105°C
- Voltage ratings: Up to 1200 V DC at 70°C, Uoppc 600-1200 V, with derating at higher temperatures
- Ripple current capability: High, with low ESR and ESL
- Self inductance: <1 nH per mm lead spacing
- Insulation resistance: >10,000 s after 1 min at rated voltage
- Useful life: Over 100,000 hours at specified voltage and temperature
- Mounting: Radial, mounted on PCB with mechanical fixation
- Climatic testing: 55/105/56, IEC standards
- Sealed encapsulation: Flame retardant resin
- Self-healing capability: Yes, with puncture resistance
- Compliance: RoHS, IEC 61071, IEC 60068
- Standards: IEC, UL, CSA certifications
Buy the Buy Vishay Metallized Polypropylene Film Capacitor Part Number MKP1848C71060JY5 Online
Discover the high-density, long-life metallized polypropylene DC-link capacitor designed for renewable energy, motor drives, and UPS applications. Offering high ripple current capacity, low ESR and ESL, and robust construction in flame-retardant resin cases, these capacitors ensure reliable energy storage and power quality. Suitable for demanding environments, they support extensive operational lifetimes exceeding 100,000 hours at 70°C, conform to RoHS standards, and meet strict IEC testing requirements. Upgrade your power systems today with Vishay's proven, durable capacitor technology for maximum efficiency and stability.
Buy Vishay MKP1848C71060JY5 now and experience unmatched reliability and performance in power inverter and renewable energy systems.
Frequently Asked Questions
Where can I buy Vishay MKP1848C71060JY5?
You can click on the BUY or RFQ button to purchase MKP1848C71060JY5 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MKP1848C71060JY5?
You can download the MKP1848C71060JY5 datasheet or visit the Vishay website for support.
Who is the manufacturer of MKP1848C71060JY5?
Vishay
