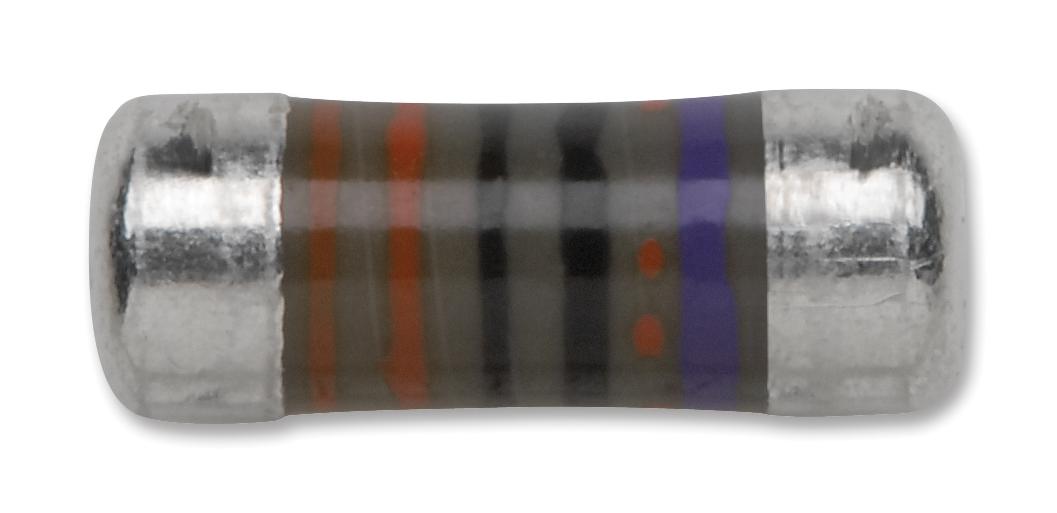

Vishay MMB0207MC3904FB200 High-Voltage Thin Film Resistor
The MMB 0207 HV is a high-voltage professional thin film MELF resistor designed for reliable performance in lighting, industrial, and medical equipment applications. Made with advanced metal film technology, it features high operating voltages up to 1000 V, excellent pulse load capability, and intrinsic sulfur resistance. The resistor's compact size, robust construction, and strict production controls ensure stability, longevity, and precision. Suitable for automatic SMD assembly, it withstands various environmental conditions, meeting RoHS standards and ensuring long-term durability in critical electronic circuits.
Vishay MMB0207MC3904FB200 High-Voltage Thin Film Resistor Specifications:
- DIN size: 0207
- Metric size code: RC6123M
- Resistance range: 340 kΩ to 10 MΩ
- Resistance tolerance: 21%
- Temperature coefficient: +50 ppm/K
- Voltage coefficient: <2 ppm/V
- Rated dissipation: 1.0 W
- Operating voltage: 1000 V
- Permissible film temperature: 155°C
- Operating temperature range: -55°C to 155°C
- Permissible voltage against ambient (insulation): 500 V
- Physical dimensions: Length 5.8 mm, Width 2.2 mm, Height 3.2 mm
- Material: Metal film on ceramic body (Al2O3)
- Terminations: Nickel-plated steel with matte tin finish
- Compliance: RoHS, Halogen-free
- Application: Lighting, Medical Equipment, Industrial Electronics
Buy the Vishay MMB 0207 HV – Reliable High-Voltage Thin Film MELF Resistors for Industrial Applications
Order the Vishay MMB 0207 HV resistor today through our online store to benefit from outstanding high-voltage stability, excellent pulse load capacity, and proven reliability for demanding lighting, industrial, and medical electronics applications. With a maximum operating voltage of 1000 V, precision resistance range from 340 kΩ to 10 MΩ, and advanced metal film technology, this resistor ensures long-term stability. Its robust ceramic body, lead-free nickel-plated terminations with matte tin finish, and RoHS compliance make it ideal for automated SMD assembly and environmentally conscious manufacturing. Purchase now for fast delivery and peace of mind in critical electronic design.
Buy Vishay MMB 0207 HV now and experience unmatched reliability and performance in high-voltage electronic circuits.
Frequently Asked Questions
Where can I buy Vishay MMB0207MC3904FB200?
You can click on the BUY or RFQ button to purchase MMB0207MC3904FB200 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MMB0207MC3904FB200?
You can download the MMB0207MC3904FB200 datasheet or visit the Vishay website for support.
Who is the manufacturer of MMB0207MC3904FB200?
Vishay
