Vishay NTCALUG85A103GLA NTC Thermistor Sensor

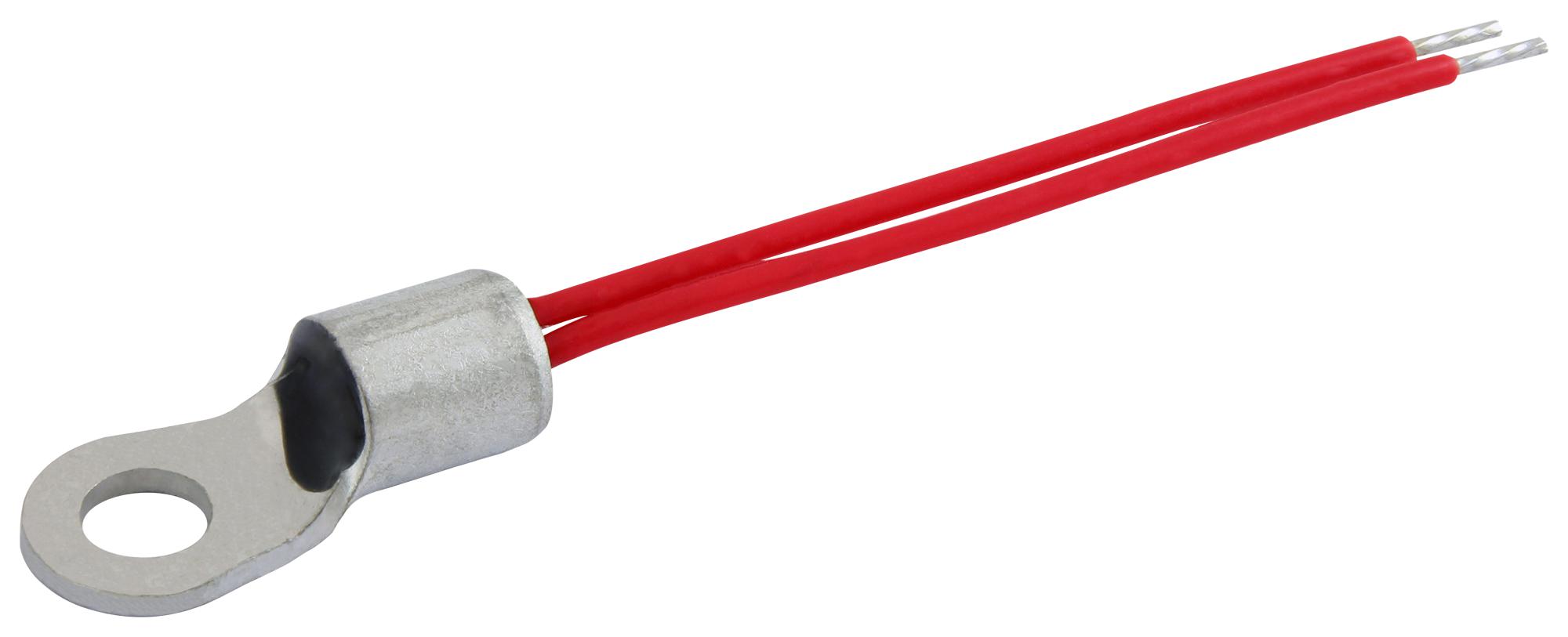

This high-quality lug mount NTC thermistor sensor provides accurate temperature measurement and easy installation with a ring tongue terminal. Its rugged construction ensures longevity, and PTFE insulated cable offers excellent electrical insulation and thermal contact for surface sensing applications. Suitable for automotive and industrial environments, it is AEC-Q200 Grade 1 qualified and UL recognized. The sensor features a 10KΩ resistance at 25°C, with a tolerance of 22%. It operates from -40°C to +150°C, making it a reliable choice for precise temperature monitoring in challenging settings.
Vishay NTCALUG85A103GLA NTC Thermistor Sensor Specifications:
- Resistance value at 25 °C: 10KΩ
- Tolerance on Rs-value: 22%
- Temperature Range: -40°C to +150°C
- Operating Dissipation Factor: 23 mW/K
- Thermal Time Constant: 275 s
- Voltage Between Terminals and Lug: 1800 Vac
- Rated for Surface Mounting: M6 (Stud #1/4)
- Cable Insulation: PTFE
- Material: Copper ring lug, epoxy coating, silver plated copper leads
- RoHS Compliant: Yes
- UL Recognized: Yes, file E148885
Buy the Vishay Series NTCALUG85A Thermistor: NTCALUG85A103GLA
Purchase the Vishay Series NTCALUG85A103GLA thermistor online now and enjoy durable, high-precision temperature measurement ideal for automotive and industrial applications. This sensor features easy mounting with an M6 stud, PTFE insulation for excellent electrical insulation, and rugged construction for long-lasting performance. UL recognized and AEC-Q200 Grade 1 qualified, it offers reliable operation from -40°C to +150°C, making it perfect for surface sensing tasks requiring precise thermal contact and insulation. Secure your stock today!
Order your Vishay Series NTCALUG85A103GLA surface sensing thermistor today and ensure reliable temperature measurement with rugged construction and high precision.
Frequently Asked Questions
Where can I buy Vishay NTCALUG85A103GLA?
You can click on the BUY or RFQ button to purchase NTCALUG85A103GLA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part NTCALUG85A103GLA?
You can download the NTCALUG85A103GLA datasheet or visit the Vishay website for support.
Who is the manufacturer of NTCALUG85A103GLA?
Vishay
