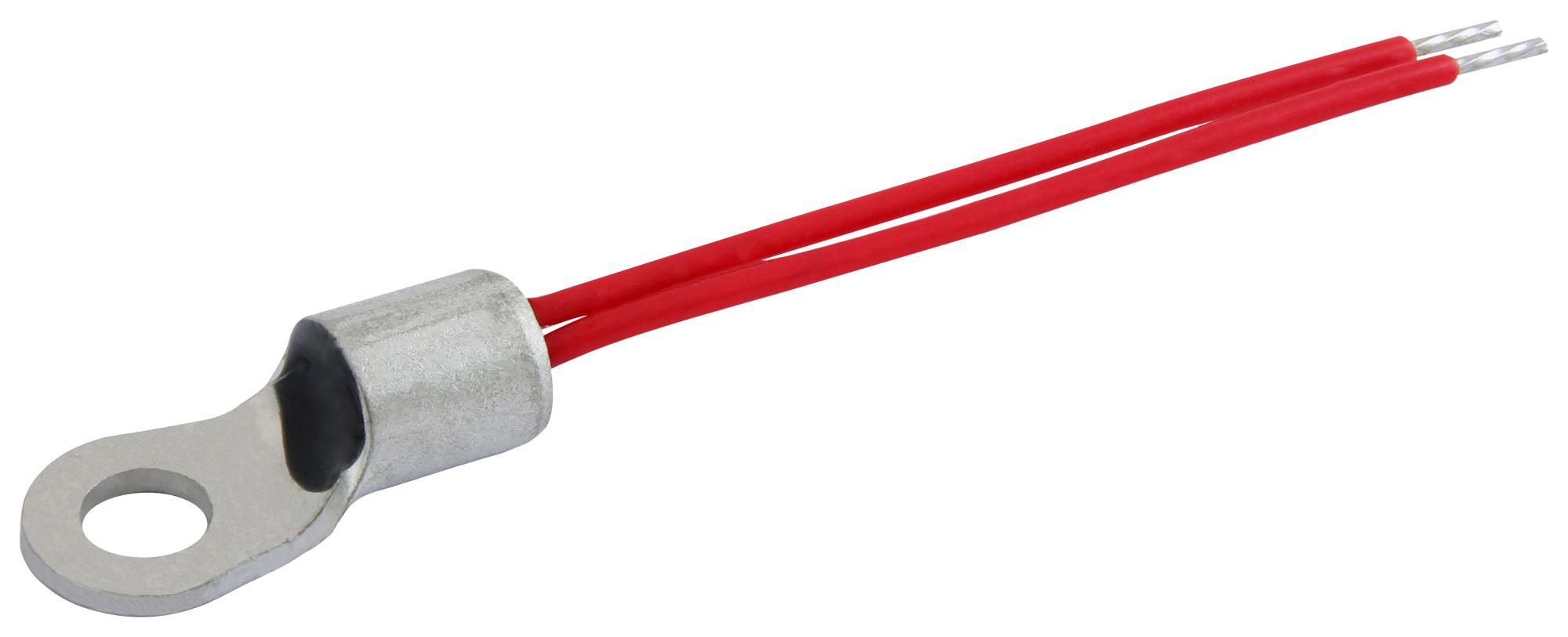

Vishay NTCALUG91A103GLA NTC Thermistor
This M4 series lug-mounted NTC thermistor features a 10K resistance at 25°C, with a rugged PTFE insulation cable rated for 600 V. Designed for surface sensing applications needing excellent electrical insulation and thermal contact, it includes a soldered chip with a silver-plated copper lead and epoxy coating. Mountable via M4 screw, it’s suitable for PCB soldering or metal surface attachment. The thermistor meets UL, RoHS, and AEC-Q200 standards, ensuring reliable performance in demanding environments and ease of installation for temperature sensing and electrical insulation tasks.
Vishay NTCALUG91A103GLA NTC Thermistor Specifications:
- Resistance at 25°C: 10K Ω
- Tolerance: ±2% on resistance
- B-value: 3435 to 3084 K
- Operating temperature range: -40°C to +150°C
- Dissipation factor: 23 mW/K
- Thermal time constant: 275 s
- Voltage rating: 600 V
- Material: PTFE-insulated cable with epoxy coating
- Mounting: M4 screw or soldering for PCB
- Cable length options: 38mm, 150mm, 300mm
- Insulation: PTFE cable according to NEMA HP-3, type E
- Standards: UL recognized, RoHS compliant, AEC-Q200 qualified
- Package: Cardboard box
- Dimensions: Refer to dimensions in millimeters on datasheet
Buy the Vishay Series N4 10K Resistance Thermistor: NTCALUG91A103GLA
Purchase the Vishay NTCALUG91A103GLA lug-mounted NTC thermistor online today for precise temperature sensing in industrial, electronic, and automotive applications. Featuring 10K resistance at 25°C, rugged PTFE insulation rated for 600 V, and UL, RoHS, and AEC-Q200 compliance, this thermistor is ideal for surface sensing with easy mounting via M4 screw. Its durable construction ensures longevity in harsh environments. Shop now to ensure your projects benefit from high-quality, reliable temperature measurement components available with quick delivery and excellent technical support.
Order your Vishay Series N4 10K Resistance Thermistor today and enhance your temperature sensing projects with reliable, high-quality components designed for demanding applications.
Frequently Asked Questions
Where can I buy Vishay NTCALUG91A103GLA?
You can click on the BUY or RFQ button to purchase NTCALUG91A103GLA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part NTCALUG91A103GLA?
You can download the NTCALUG91A103GLA datasheet or visit the Vishay website for support.
Who is the manufacturer of NTCALUG91A103GLA?
Vishay
