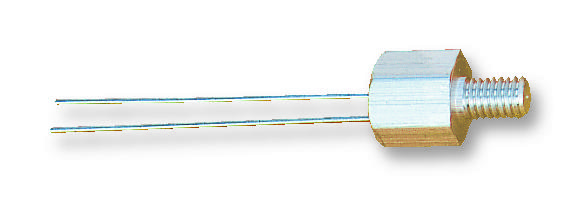

Vishay NTCASCWE3102J NTC Thermistor Sensor
The NTC Thermistor Screw Threaded Sensors are rugged, RoHS-compliant devices made of NTC ceramic material. They feature reflow soldered tinned copper or nickel wires embedded in a passivated aluminum screw head (M4 size). With resistance values ranging from 1.0 kΩ to 470 kΩ at 25°C, these sensors provide accurate temperature sensing and control in industrial applications. Designed for easy mounting via a washer and M4 nut, they offer excellent thermal contact with chassis and electrical insulation, making them suitable for temperature measurement and sensing with a maximum dissipation of 500 mW.
Vishay NTCASCWE3102J NTC Thermistor Sensor Specifications:
- Resistance at 25°C: 1.0 kΩ to 470 kΩ
- Tolerance on Resistance: ±1%, ±2%, ±3%, ±4.5%
- Maximum Dissipation: 500 mW
- Operating Temperature Range: -40°C to +100°C (at zero dissipation), 0°C to +55°C (max dissipation)
- Thermal Time Constant: 75 seconds
- Weight: 159 g
- Indication of resistance values: e.g., 397K, 3740K, 4090K, etc.
- Material: NTC ceramic, passivated aluminum screw
- Mounting: M4 screw with washer and nut, torque up to 1.2 Nm
- Insulation Resistance: >100 MΩ
- Dielectric Withstanding Voltage: 1500 Vac (1s)
Buy the Vishay 2381 640 7… – Reliable NTC Thermistor for Industrial Applications
Purchase the Vishay NTC Thermistor Sensor series online today and upgrade your temperature measurement systems. These durable, RoHS-compliant sensors provide reliable thermal contact and electrical insulation. Perfect for industrial applications requiring precise sensing, they are easy to mount with included hardware and designed for robustness in challenging environments. Secure your supply of high-quality thermistors now and enhance your temperature control capabilities with trusted Vishay components, ensuring optimal performance and long-term stability in your projects.
Order your Vishay 2381 640 7... NTC screw thread thermistor today and ensure accurate temperature sensing with rugged, RoHS-compliant construction suitable for industrial projects.
Frequently Asked Questions
Where can I buy Vishay NTCASCWE3102J?
You can click on the BUY or RFQ button to purchase NTCASCWE3102J from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part NTCASCWE3102J?
You can download the NTCASCWE3102J datasheet or visit the Vishay website for support.
Who is the manufacturer of NTCASCWE3102J?
Vishay
