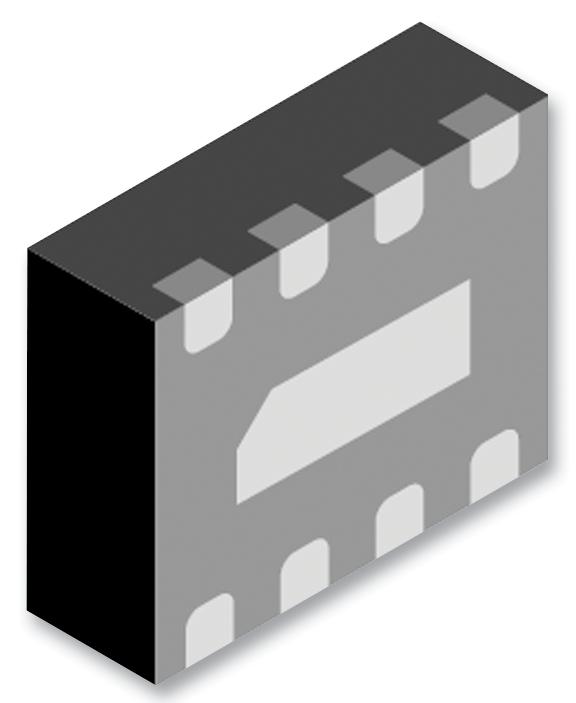

Vishay VESD05A8AHNHGS08 ESD Protection Diode Array
The VESD05A8A-HNH is a highly reliable 8-line bidirectional ESD protection diode array in a compact LLP1713-9L package. Designed to protect signal and data lines against voltage transients, it features a low profile of less than 0.6 mm, low leakage current under 1 pA, and low load capacitance of 30 pF. It offers robust ESD immunity up to 25 kV contact discharge and 30 kV air discharge, making it ideal for sensitive electronics. Its high working voltage range of 5 V ensures dependable performance in various applications, with material choices that exclude tin for better environmental compliance.
Vishay VESD05A8AHNHGS08 ESD Protection Diode Array Specifications:
- Package: LLP1713-9L, ultra compact, low profile < 0.6 mm
- Number of lines protected: 8 lines bidirectional (BiAs mode), 7 lines symmetrical (BiSy mode)
- Reverse stand-off voltage: Vawm = 5 V (BiAs), Vawm = 5.5 V (BiSy)
- Reverse breakdown voltage: Ver = 6-8 V (BiAs), 65-87 V (BiSy)
- Reverse current at Vawm: Ip < 1 pA
- Clamping voltage: Vo = 13 V (IEC 61000-4-5, 5 A pulse)
- Capacitance: Cp = 30 pF (±5 pF), at Va=0 V and 1 MHz
- Discharge immunity: Contact discharge up to 25 kV, air discharge up to 30 kV (IEC 61000-4-2)
- Operating temperature: -40°C to +125°C, storage: -55°C to +150°C
- Material: Halogen-free, RoHS compliant, no tin content, with precious metal options like Ag, Au
Buy the Vishay Series LLP1713-9L ESD Protection: VESD05A8A-HNH
Enhance your electronic device safety with the Vishay Series LLP1713-9L ESD protection diode array. Offering 8 lines of bidirectional protection, its compact design fits easily into space-constrained applications. Featuring low leakage current, high ESD immunity up to 25 kV contact discharge, and a low profile of under 0.6 mm, it guarantees dependable performance. Suitable for sensitive signal lines, this RoHS-compliant, halogen-free device ensures robust and environmentally friendly transient voltage suppression suitable for modern electronics manufacturing. Purchase online today for quick, reliable protection from voltage spikes and electrostatic discharge.
Order your Vishay Series LLP1713-9L VESD05A8A-HNH today and ensure your electronic devices are protected against high-voltage transients with reliable, compact ESD protection.
Frequently Asked Questions
Where can I buy Vishay VESD05A8AHNHGS08?
You can click on the BUY or RFQ button to purchase VESD05A8AHNHGS08 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VESD05A8AHNHGS08?
You can download the VESD05A8AHNHGS08 datasheet or visit the Vishay website for support.
Who is the manufacturer of VESD05A8AHNHGS08?
Vishay
