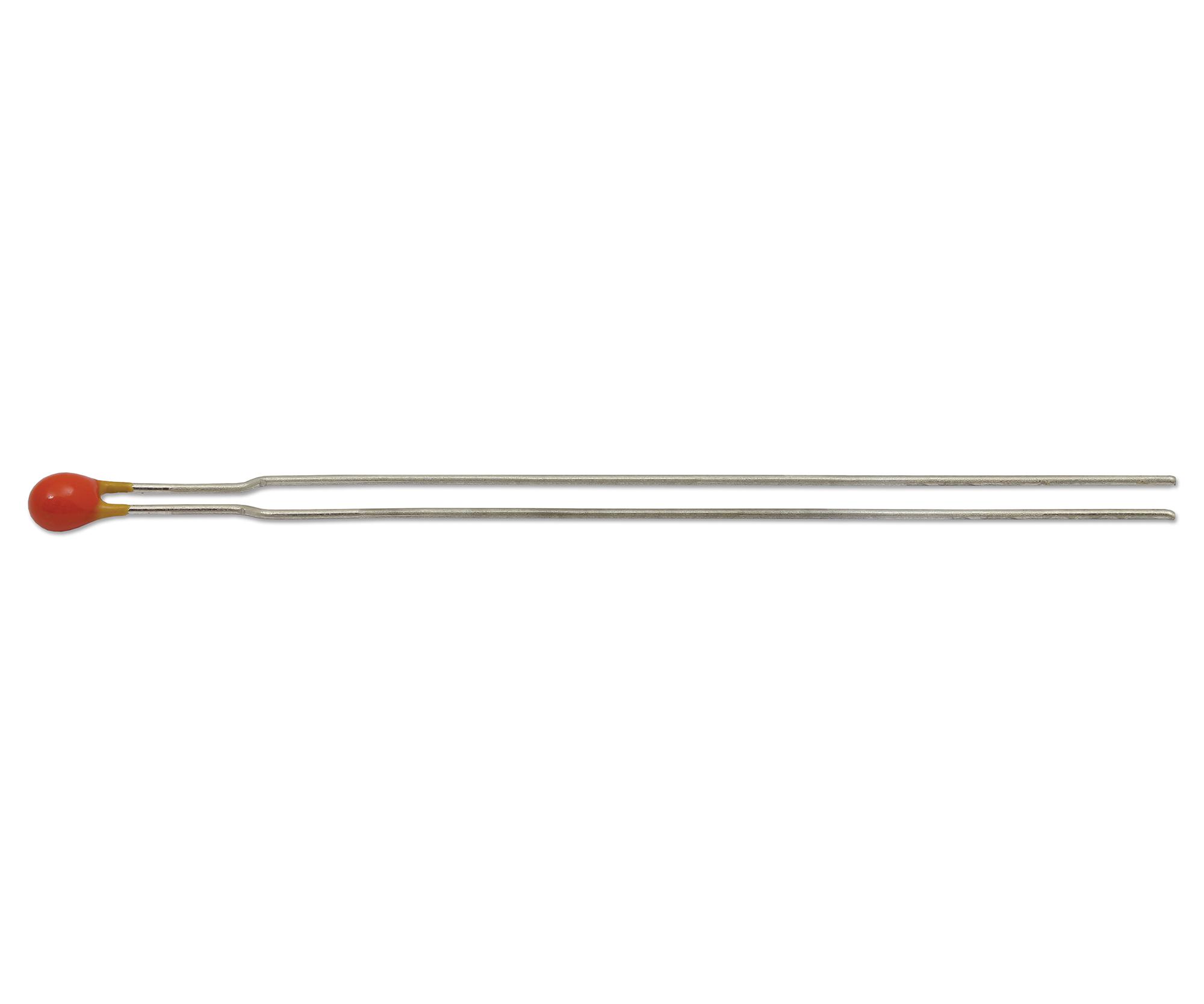

Vishay NTCLE213E3103FHB0 Temperature Sensor
This high-quality NTC thermistor is epoxy-coated with a small body diameter of max. 2.5 mm, suitable for temperature sensing and control in industrial, automotive, and HVAC applications. It offers a wide temperature range from -55°C to +150°C, ensuring reliable performance under thermal shocks, with fast response time of 5 seconds from 25°C to 85°C. The thermistor has high sensitivity, RoHS compliance, and is compatible with standard mounting processes such as crimping, soldering, and welding, making it ideal for precise temperature regulation.
Vishay NTCLE213E3103FHB0 Temperature Sensor Specifications:
- Resistance value at 25 °C: 2.1K to 100K
- Tolerance on Rs: 1 to 5 %
- Tolerance on B: +0.5 to +1.5 %
- Temperature range: -55°C to +150°C
- Response time (63.2 %): 5 s
- Maximum power dissipation: 100 mW
- Material: Epoxy coating, tinned nickel leads
- Dimensions: Max. mounting diameter 2.5 mm
- Insulation resistance at 100 V: > 10 MΩ
- Dissipation factor in still air: 18 mW
- Weight: 100 mg
Buy the Vishay NTCLE213E3103FHB0 – Reliable Temperature Sensor for Industrial Applications
Get the Vishay NTCLE213E3103FHB0 thermistor online today to enhance your temperature sensing solutions. This epoxy-coated sensor features a compact 2.5 mm body diameter, wide -55°C to +150°C range, and fast response time of 5 seconds, making it ideal for industrial, automotive, and heating system applications. Its high sensitivity and RoHS compliance guarantee reliable operation, while easy mounting processes like soldering or crimping ensure installation flexibility. Purchase now for accurate temperature control in your critical engineering projects.
Order your Vishay NTCLE213E3103FHB0 thermistor today and ensure precise temperature measurement for industrial, automotive, and HVAC projects with dependable quality.
Frequently Asked Questions
Where can I buy Vishay NTCLE213E3103FHB0?
You can click on the BUY or RFQ button to purchase NTCLE213E3103FHB0 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part NTCLE213E3103FHB0?
You can download the NTCLE213E3103FHB0 datasheet or visit the Vishay website for support.
Who is the manufacturer of NTCLE213E3103FHB0?
Vishay
