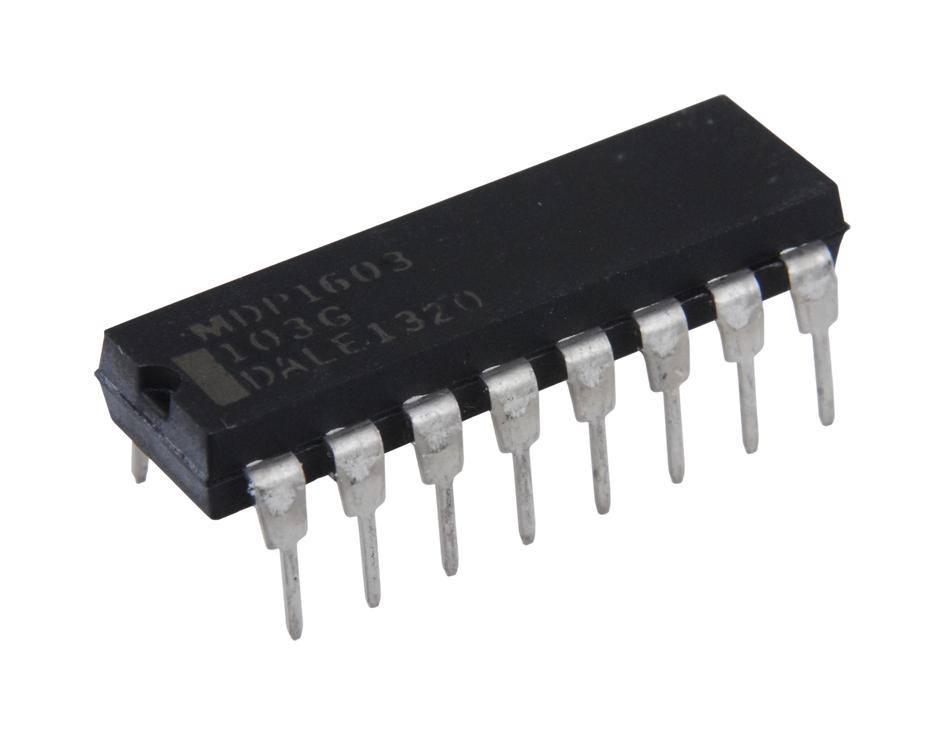

Vishay MDP160310K0GD04 Resistor Network
The MDP series resistors are molded, dual-in-line thick film resistor networks designed for applications requiring isolated, bussed, and dual terminator configurations. They feature rugged epoxy cases, low temperature coefficients of ±100 ppm/°C, and RoHS compliance. Available in various resistance ranges from 10 Ω to 2.2 MΩ, they are suitable for high-speed digital, pulse squaring, and line termination. These resistor networks offer tight tolerance options and are compatible with automatic inserting equipment, providing reliable performance in temperature ranges from -55°C to +125°C.
Vishay MDP160310K0GD04 Resistor Network Specifications:
- Package Power Rating: 1.73 W (MDP14), 1.92 W (MDP16) at +70°C
- Voltage Coefficient of Resistance: < 50 ppm typical
- Dielectric Strength: 200 V (VAC)
- Insulation Resistance: > 10,000 MΩ minimum
- Operating Temperature Range: -55°C to +125°C
- Storage Temperature Range: -55°C to +150°C
- Body: Molded epoxy
- Terminals: Solder plated leads
- Weight: 1.3 g (14 pin), 1.59 g (16 pin)
- Impedance Codes: Range from 82 Ω to 6.2 kΩ
- Resistance Tolerance: ±1%, ±2%, ±5%
- Dimensions in inches: MDP14: 0.750 x 0.600; MDP16: 0.850 x 0.700
- Maximum seated height: 0.160 inches (4.06 mm)
Buy the Vishay Series MDP Resistor Network: MDP160310K0GD04
Purchase the Vishay Series MDP160310K0GD04 resistor network online today to enhance your electronic designs with durable, RoHS-compliant resistor arrays. Suitable for digital signal processing, line termination, and pulse squaring, these resistor networks deliver consistent performance over a wide temperature range. With high-quality epoxy molding, precise impedance, and low temperature coefficient, they are ideal for high-speed and demanding applications. Secure your supply now and ensure your projects benefit from Vishay's trusted reliability and performance standards.
Order your Vishay Series MDP160310K0GD04 resistor network today and ensure your electronic projects benefit from reliable, high-performance resistors.
Frequently Asked Questions
Where can I buy Vishay MDP160310K0GD04?
You can click on the BUY or RFQ button to purchase MDP160310K0GD04 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MDP160310K0GD04?
You can download the MDP160310K0GD04 datasheet or visit the Vishay website for support.
Who is the manufacturer of MDP160310K0GD04?
Vishay
