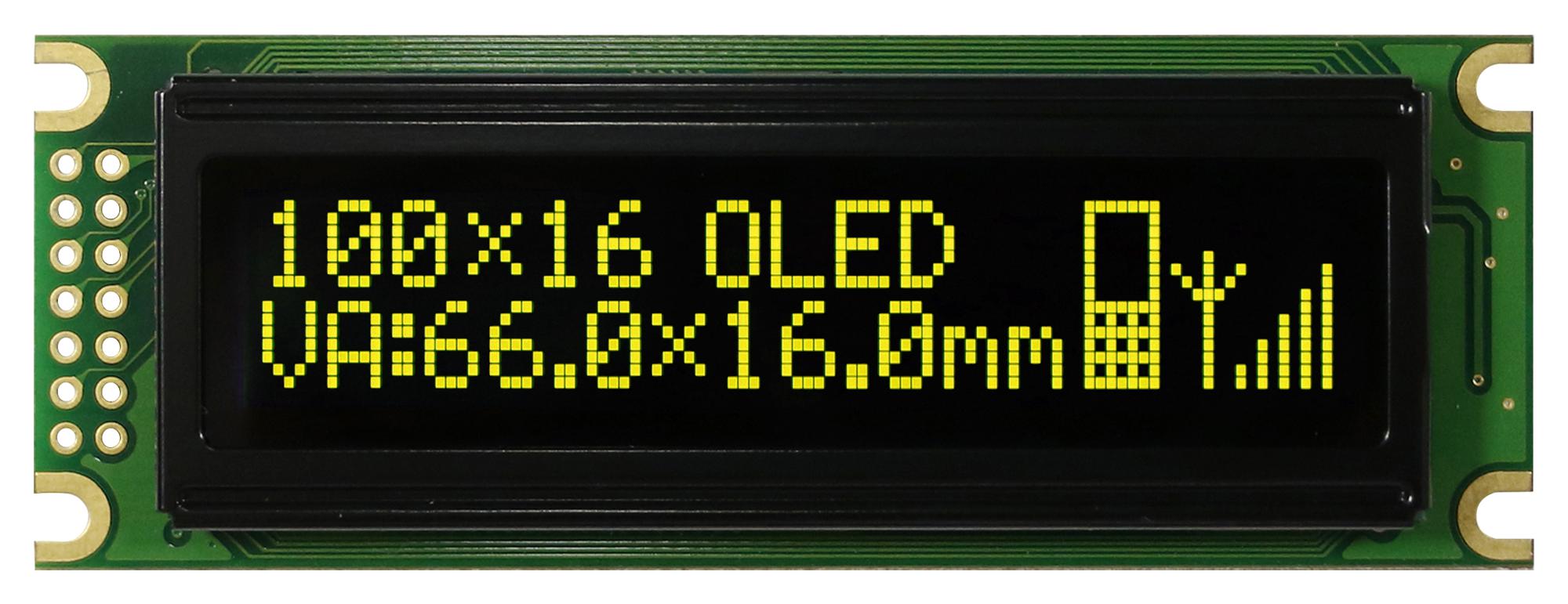

Vishay O100H016DLPP5N0000 Graphic OLED Module
The Vishay OLED-100H016D is a yellow-emitting 100-by-16 dot graphic OLED display module with an integrated OLED-0010 controller. It features a 5V operation, a duty cycle of 1/16, and a compact form factor measuring 85mm x 30mm x 10mm. The display has a viewing area of 66mm x 16mm and an active area of 59.95mm x 11.15mm, with individual dots of 0.55mm x 0.65mm and a pitch of 0.6mm x 0.7mm. It includes mounting holes at 81mm x 24mm, suitable for imaging, video, and vision applications.
Vishay O100H016DLPP5N0000 Graphic OLED Module Specifications:
- Display format: 100 x 16 dots
- Module dimensions: 85.0 x 30.0 x 10.0 mm
- Viewing area: 66.0 x 16.0 mm
- Active display area: 59.95 x 11.15 mm
- Dot size: 0.55 x 0.65 mm
- Dot pitch: 0.60 x 0.70 mm
- Supply voltage for logic: 3.0 to 5.0 V
- Operating current: up to 30 mA
- Emitting color: Yellow
- Built-in controller: OLED-0010
- Duty cycle: 1/16
- Mounting hole spacing: 81.0 x 24.0 mm
- Interface options: 6800, 8080, SPI
- Power supply: +5 V (standard), +3 V optional
Buy the Vishay Series OLED-100H016D Graphic OLED Display: O100H016DLPP5N0000
Experience high-quality imaging with the Vishay OLED-100H016D graphic OLED display module. This 100 by 16 dot display features a built-in OLED-0010 controller, operates at 5V, and offers a duty cycle of 1/16. Its compact size, precise dot measurement, and viewing area make it ideal for video, imaging, and vision applications. With customizable interface options and robust construction, this display ensures clarity and durability for your advanced projects. Order online today to upgrade your display solutions efficiently.
Order your Vishay Series OLED-100H016D 100x16 graphic OLED display today and enhance your imaging and vision projects with reliable quality.
