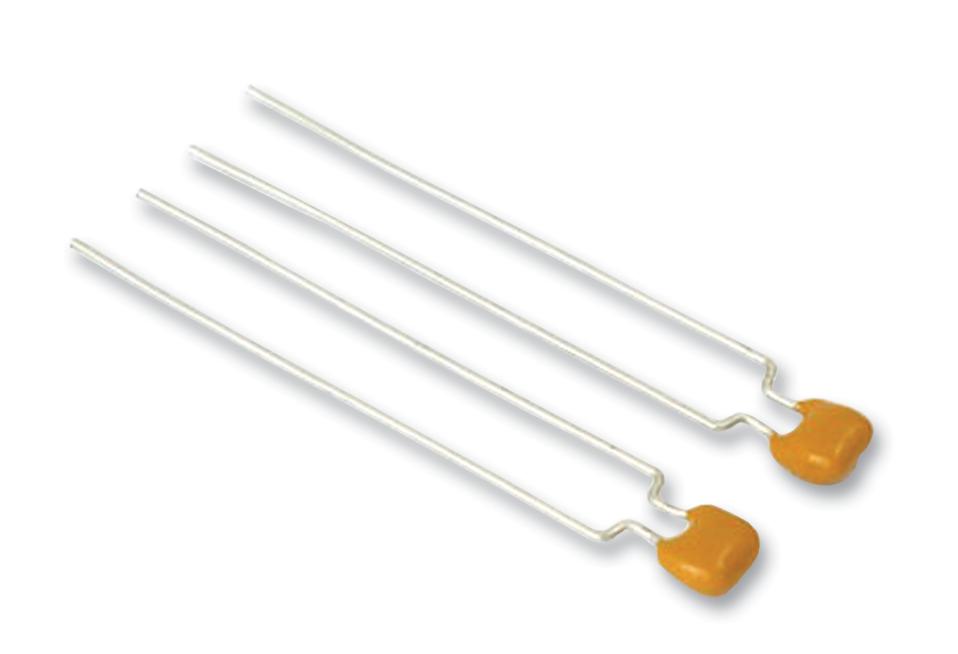

Vishay TFPTL15L5001FL2B Linear Thermistor
Vishay's Radial Leaded PTC thermistor features nickel thin film technology, offering high stability for temperature measurement, sensing, and control applications. Crafted with a ceramic chip and tinned copper leads, this linear thermistor is RoHS compliant, epoxy-coated, UL recognized, and suitable for soldering or welding in various positions. Available in multiple resistance values, it provides reliable performance from -55°C to +70°C, with a quick response time of around 15-16 seconds and maximum rated power up to 100 mW. Ideal for industrial and consumer remote or onboard temperature sensing uses.
Vishay TFPTL15L5001FL2B Linear Thermistor Specifications:
- Resistance values: 100Ω to 5KΩ at 25°C
- Tolerance on Resistance: ±5%
- TCR at 25°C: 4,100 to 4,700 ppm/°C
- Operating temperature range: -55°C to +70°C, non-dissipative up to +150°C
- Maximum rated power: 75 to 100 mW at 70°C
- Maximum working voltage: 30 to 40 V
- Dissipation factor: 2.9 to 3.4 mW/K
- Response time: 14-16 seconds in oil
- Weight: 0.12 to 0.14 grams
- Construction: Nickel thin film ceramic chip with tinned copper leads
- RoHS, UL recognized, epoxy coated, UL 94 V-0 approved
- Climatic category: 55/150/56
- Dimensions: L10 and L15 sizes with lead spacing of 2.5 mm or 5.0 mm, length L >= 25 mm with minimum 25 mm lead length
- Reliable in harsh environments, resistant to high temperature exposure and thermal cycling
Buy the Buy Vishay Thermistor Part Number TFPTL15L5001FL2B Online
Purchase the Vishay linear thermistor TFPTL15L5001FL2B online today. With high stability nickel thin film technology, RoHS compliance, and UL recognition, it offers precise temperature measurement for industrial and consumer applications. Its ceramic chip construction, epoxy coating, and robust leads ensure durability and reliable performance from -55°C to +70°C. Ideal for sensing, compensation, and control, this thermistor provides fast response times, high power ratings, and broad resistance options, making it a perfect choice for remote or onboard temperature sensing needs.
Buy Vishay TFPTL15L5001FL2B now and experience unmatched stability and precision in temperature sensing for industrial and consumer electronics.
Frequently Asked Questions
Where can I buy Vishay TFPTL15L5001FL2B?
You can click on the BUY or RFQ button to purchase TFPTL15L5001FL2B from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part TFPTL15L5001FL2B?
You can download the TFPTL15L5001FL2B datasheet or visit the Vishay website for support.
Who is the manufacturer of TFPTL15L5001FL2B?
Vishay
