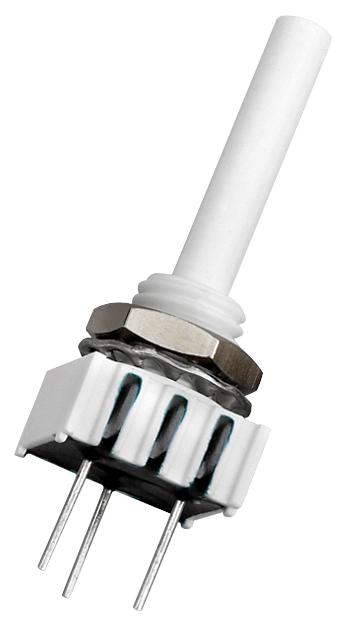

Vishay P10XXAI103KB30 Miniature Panel Potentiometer
The P10 series miniature panel potentiometer offers precise setting control with a robust cermet resistive element, fully sealed design, and a mechanical life of 10,000 cycles. Suitable for applications such as temperature, volume, and timing control, it features industrial-grade quality, a plastic housing, and multiple pin styles. Its compact size and reliable performance make it ideal for industrial environments requiring durability and stability over extended use. RoHS compliant, with a resistance range from 100Ω to 2MΩ and a power rating of 0.5W at 70°C, ensuring versatile application.
Vishay P10XXAI103KB30 Miniature Panel Potentiometer Specifications:
- Resistive element: Cermet
- Electrical travel: 250° + 15°
- Resistance values: 100Ω to 2MΩ
- Tolerance: 10% - 5% (on request)
- Power rating: 0.5W at 70°C
- Dielectric strength: 1000V RMS
- Insulation resistance: 108MΩ at 300V
- Mechanical travel: 290° + 5°
- Operating torque: 2 oz.-inch max
- Sealing: Fully sealed, IP67
- Operating temperature range: -55°C to +125°C
- Terminal material: Pure Sn
- Mounting hardware: Nuts and washers (separately supplied)
Buy the Vishay Series P10 Potentiometer: P10XXAI103KB30
Order the Vishay P10 series miniature sealed potentiometer online today to ensure precise adjustments and durable performance in demanding environments. Designed for industrial applications, it features a cermet resistive element, a fully sealed IP67 housing, and a power rating of 0.5W at 70°C, ensuring long-lasting stability and accuracy. Whether for temperature, volume, or timing control, this compact potentiometer offers reliable operation through 10,000 cycles lifecycle. Shop now to enhance your manufacturing or automation systems with this high-quality component.
Buy Vishay P10XXAI103KB30 now and experience unmatched reliability and stability for precise industrial control applications.
Frequently Asked Questions
Where can I buy Vishay P10XXAI103KB30?
You can click on the BUY or RFQ button to purchase P10XXAI103KB30 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part P10XXAI103KB30?
You can download the P10XXAI103KB30 datasheet or visit the Vishay website for support.
Who is the manufacturer of P10XXAI103KB30?
Vishay
