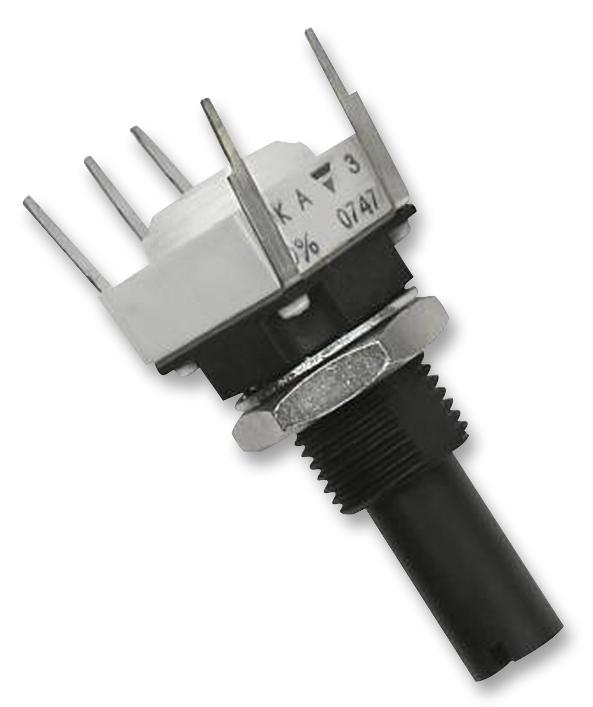

Vishay P11P1F0GGSY00102KA Modular Potentiometer Rotary Switch
The P11P series includes high dielectric strength modular potentiometers and rotary switch modules suitable for industrial control applications. Features include high dielectric strength up to 5000 V, multiple modules (up to seven), sealed versions, and different resistive elements such as cermet or conductive plastic. Designed for durable operation with mechanical travel up to 300°+5°, they support various configurations including detent, neutral, and center tap options. Suitable for precise control in industrial automation, these robust modules comply with RoHS and IEC standards, offering reliable performance in demanding environments.
Vishay P11P1F0GGSY00102KA Modular Potentiometer Rotary Switch Specifications:
- Electrical travel: 270° + 10°
- Resistance range: 1kΩ to 10 MΩ
- Power rating at 70°C: 0.25 W to 1 W
- Dielectric strength: Minimum 5000 Vrms
- Mechanical travel: 300° + 5°
- Operating temperature: -40°C to +100°C
- Sealing: IP64 for potentiometers, IP60 for switches
- End resistance: Typical 20Ω
- Lifetime: 50,000 cycles
- Switching power: Max 15 VA, Max 2A
- Switching voltage: Max 250 V
- Contact resistance variation: 1-3Ω
Buy the Vishay P11P – Reliable Rotary Switches for Industrial Applications
Enhance your industrial control systems with Vishay P11P series modules. Featuring high dielectric strength up to 5000 V, sealed construction, and multiple configurations, these potentiometers and rotary switches provide reliable and precise control in demanding environments. With options for detent, neutral, and center tap modules, they are ideal for automation, instrumentation, and control panels. Easy to install, RoHS compliant, and tested according to international standards, P11P modules deliver high performance and durability for your industrial needs.
Order your Vishay P11P series potentiometers and switches today and ensure precise, durable control for your industrial projects.
