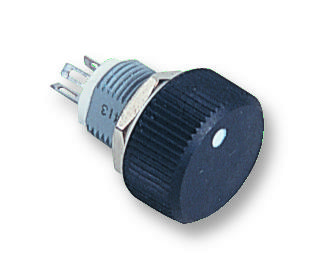

Vishay P16NP105KAB15 Sealed Panel Potentiometer
The P16 series includes panel-mounted potentiometers designed for industrial and professional applications, featuring sealed construction and multiple knob options. The P16NP model integrates a cermet resistive element with a 270° +10° travel, high dielectric strength of 2500 V, sealed to IP67, and suitable for control systems requiring robustness and precision. Its compact design minimizes panel space while providing reliable performance across various operating conditions, with version options for conducting plastic or cermet elements for different electrical and environmental requirements.
Vishay P16NP105KAB15 Sealed Panel Potentiometer Specifications:
- Mechanical travel: 300° + 5°
- Power rating: 1 W at 40°C (cermet), 0.5 W at 40°C (conductive plastic)
- Dielectric strength: 2500 V
- Resistance range: 22 kΩ to 220 MΩ (standard), with various tapers
- Tolerance: ±20%, on request ±10%
- Insulation resistance: > 10^4 MΩ at 500 V
- Operating temperature: -40°C to +125°C (metallic knob), -40°C to +85°C (plastic knob)
- Sealing: IP67, panel sealed
- Dimensions: Panel cutout approx. 96 mm x 88 mm, thread M10 x 0.75
- Environmental: Climatic category 40/100/56 (metal), 40/85/56 (plastic)
- Weight: approx. 45 g
- Knob options: metallic black, white, or blue; custom options available
Buy the Buy Vishay Sfernice P16 Series Part Number P16NP105KAB15 Online
Secure your Vishay Sfernice P16NP105KAB15 sealed potentiometer online today. Engineered for durability and precision, this industrial-grade control device offers IP67 sealing, a 270° travel range, and a high dielectric strength of 2500 V for your professional and industrial applications. Its compact design minimizes panel space while providing outstanding performance in demanding environments. Suitable for various resistive elements, it’s ideal for control panels requiring robust, sealed, and reliable potentiometers. Order now and upgrade your control systems with confidence.
Order your Vishay Series P16NP105KAB15 sealed potentiometer today and enhance your control systems with reliable, industrial-grade precision components.
Frequently Asked Questions
Where can I buy Vishay P16NP105KAB15?
You can click on the BUY or RFQ button to purchase P16NP105KAB15 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part P16NP105KAB15?
You can download the P16NP105KAB15 datasheet or visit the Vishay website for support.
Who is the manufacturer of P16NP105KAB15?
Vishay
