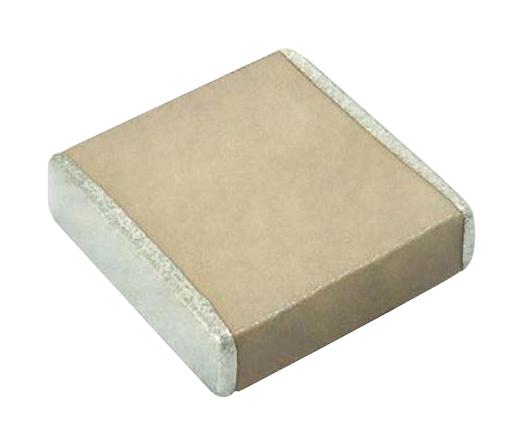

Vishay VJ1111D5R6CXRAJ High-Frequency Ceramic Capacitor
Vishay Vitramon offers high-frequency multilayer ceramic capacitors optimized for RF and microwave applications. These capacitors feature ultra-stable dielectric materials, high Q factor, and reliable noble metal electrodes. They operate from -55 °C to +125 °C and are available in case sizes 0505, 1111, 2525, and 3838. Suitable for MRI, RF instruments, lasers, and impedance matching networks, these capacitors ensure high stability, low dissipation factor, and excellent insulation resistance at rated voltages up to 7200 V. RoHS-compliant with lead-free options, they provide dependable performance in demanding high-frequency environments.
Vishay VJ1111D5R6CXRAJ High-Frequency Ceramic Capacitor Specifications:
- Operating Temperature: -55 °C to +125 °C
- Capacitance Range: 0.1 pF to 12 nF depending on size
- Voltage Rating: Varies from 50 V to 7200 V
- Case Sizes: 0505, 1111, 2525, 3838
- Dielectric: Ultra-stable ceramic with COG (NP0) properties
- Dissipation Factor: max 0.05% at 1.0 V, 1 MHz
- Insulation Resistance: ≥100 MΩ at +25°C, rated voltage
- Temperature Coefficient of Capacitance: 0 ppm/°C ±30 ppm/°C
- RoHS Compliance: Yes, with lead-free options
- Construction: Surface-mount, multilayer ceramic, noble metal electrodes
- Application Examples: RF coils, lasers, filters, oscillators, impedance matching
- Packaging: Reels, waffle packs, or bulk
- Certifications: RoHS, Halogen-free options available
Buy the Buy Vishay Vitramon High-Frequency Ceramic Capacitors Part Number VJ1111D5R6CXRAJ Online
Order Vishay Vitramon high-frequency ceramic capacitors online today. These reliable surface-mount components feature ultra-stable dielectric materials, low dissipation factor, and high voltage ratings up to 7200 V. Perfect for RF and microwave applications such as MRI coils, RF instruments, lasers, and impedance matching networks, ensuring excellent performance across a wide temperature range from -55°C to +125°C. Available in multiple case sizes like 0505, 1111, 2525, and 3838, they deliver high stability, low ESR, and RoHS compliance for demanding high-frequency environments.
Get Vishay Vitramon VJ1111D5R6CXRAJ today—designed for high stability and high-frequency performance in RF and microwave circuits.
Frequently Asked Questions
Where can I buy Vishay VJ1111D5R6CXRAJ?
You can click on the BUY or RFQ button to purchase VJ1111D5R6CXRAJ from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VJ1111D5R6CXRAJ?
You can download the VJ1111D5R6CXRAJ datasheet or visit the Vishay website for support.
Who is the manufacturer of VJ1111D5R6CXRAJ?
Vishay
