Vishay P16NP223MAB15 High-Reliability Panel Potentiometer
The P16 and PA16 are panel-mounted potentiometers designed for professional and industrial applications with high reliability. The P16 features a cermet resistive element rated at 1 Watt at 40°C, while the PA16 uses conductive plastic with a 0.5 Watt rating. Both models are sealed for durability, with IP67 protection, and have a 270° electrical travel for precise adjustments. They support various taper options, including linear and logarithmic, with temperature tolerance up to ±10%. These compact, panel-sealed potentiometers are ideal for automation, control systems, and audio equipment needing robust, high-performance components.
Vishay P16NP223MAB15 High-Reliability Panel Potentiometer Specifications:
- Electrical Travel: 270° ±10°
- Resistive Element: Cermet for P16, Conductive plastic for PA16
- Power Rating: 1 W at 40°C for P16, 0.5 W at 40°C for PA16
- Dielectric Strength: 2500 V RMS
- Sealing: Fully sealed, panel sealed with IP67 protection
- Operating Temperature Range: -40 °C to 125 °C (metal knob), -40°C to 85°C (plastic knob)
- Mechanical Travel: 300° ±5°
- Torque: Operating torque typically 2 N·m, end stop torque max 25 N·m
- End Resistance: Typically 12 Ω
- Resistance Range: 22 kΩ to 470 kΩ (varies by model and taper)
- Resistance Tolerance: ±20%, on request ±10%
- Environmental: Climatic category 40/100/56 or 40/85/56, sealed container with IP67 protection
- Material: Metal or plastic knobs, custom options available
- Dimensions: Panel cutout dimensions consistent with M10 x 0.75 threading, max panel thickness 3 mm
- Packaging: Box of 20 pieces, various color and shape options available

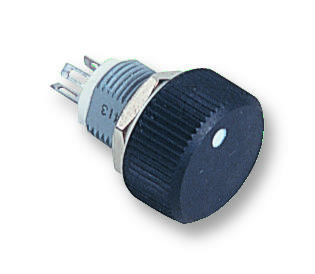

Buy the Vishay P16 – Reliable Potentiometer for Industrial Applications
Experience the dependable quality of Vishay P16 potentiometers, designed for industrial and automation systems. Fully sealed IP67 protection, high dielectric strength, and a wide temperature range ensure durability and performance. Choose from various resistive elements, tapers, and knob options to suit your application. Easy to install with panel mounting, these compact potentiometers provide precise control with a 270° travel angle. Perfect for demanding environments requiring robust, low-distortion control components, available for quick online ordering.
Order your Vishay series P16 potentiometer today and enhance your control systems with high sealing and durable performance.
Frequently Asked Questions
Where can I buy Vishay P16NP223MAB15?
You can click on the BUY or RFQ button to purchase P16NP223MAB15 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part P16NP223MAB15?
You can download the P16NP223MAB15 datasheet or visit the Vishay website for support.
Who is the manufacturer of P16NP223MAB15?
Vishay
