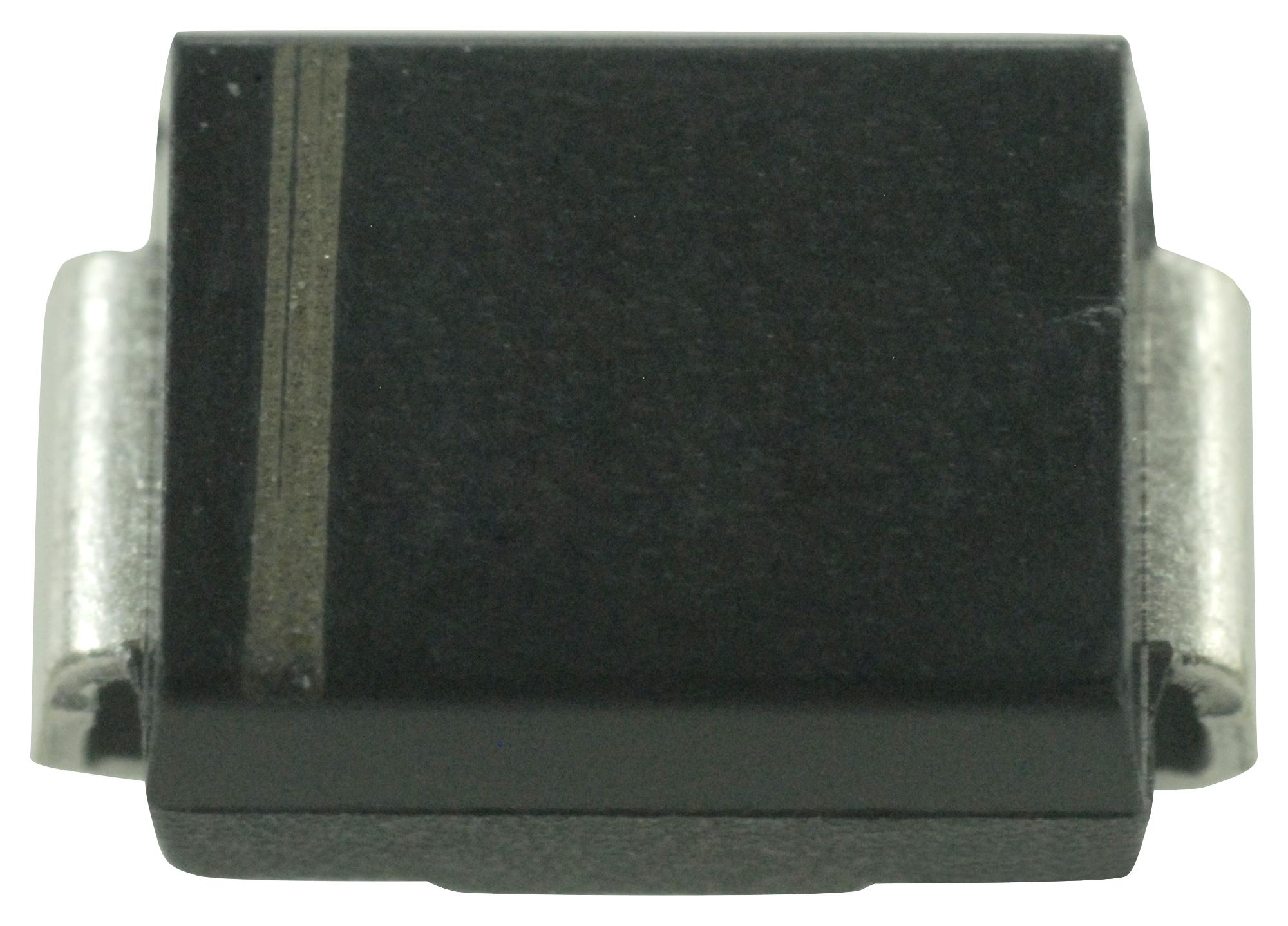

Vishay P4SMA56AHM3AH Surface-Mount Transient Voltage Suppressor
The P4SMA series from Vishay features surface-mount transient voltage suppressors in SMA (DO-214AC) packages, designed for sensitive electronics protection against voltage transients. Available in uni-directional and bi-directional configurations, these devices handle peak pulse power up to 400 W and pulse current up to 40 A, with fast response times and excellent clamping capabilities. Suitable for automotive, industrial, and consumer electronics, they meet RoHS and AEC-Q101 standards, ensuring reliability in demanding environments.
Vishay P4SMA56AHM3AH Surface-Mount Transient Voltage Suppressor Specifications:
- Package: SMA (DO-214AC)
- Peak Power Dissipation: 400 W with 10/1000 µs waveform
- Peak Pulse Current: 40 A
- Vw (uni-directional): 5.8 V to 459 V
- Vw (bi-directional): 5.8 V to 185 V
- Ver (uni-directional): 6.8 V to 540 V
- Var (bi-directional): 6.8 V to 220 V
- Temperature Range: -65°C to +150°C
- Maximum Thermal Resistance: Junction to ambient 120°C/W
- Mounting: Surface-mount, solderable
- Compliance: RoHS, AEC-Q101 qualified
- Termination: Matte tin plating
- Response Time: Very fast
- Application: Sensitive electronics protection against voltage transients in industrial, automotive, and consumer devices
Buy the VISHAY P4SMA56AHM3AH – Reliable Transient Voltage Suppressor for Industrial Applications
Secure your sensitive electronics today with the Vishay P4SMA series surface-mount transient voltage suppressors. Designed for high peak power handling up to 400 W and pulse currents of 40 A, these SMA package devices offer fast response times and excellent clamping. Ideal for automotive, industrial, and consumer electronics, they meet RoHS and AEC-Q101 standards. Ensure optimal protection against voltage transients with reliable, compact, and easy-to-mount solutions—purchase online now and safeguard your critical components efficiently.
Buy Vishay P4SMA56AHM3AH now and experience unmatched reliability and fast voltage transient protection for demanding industrial and automotive electronics.
Frequently Asked Questions
Where can I buy Vishay P4SMA56AHM3AH?
You can click on the BUY or RFQ button to purchase P4SMA56AHM3AH from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part P4SMA56AHM3AH?
You can download the P4SMA56AHM3AH datasheet or visit the Vishay website for support.
Who is the manufacturer of P4SMA56AHM3AH?
Vishay
