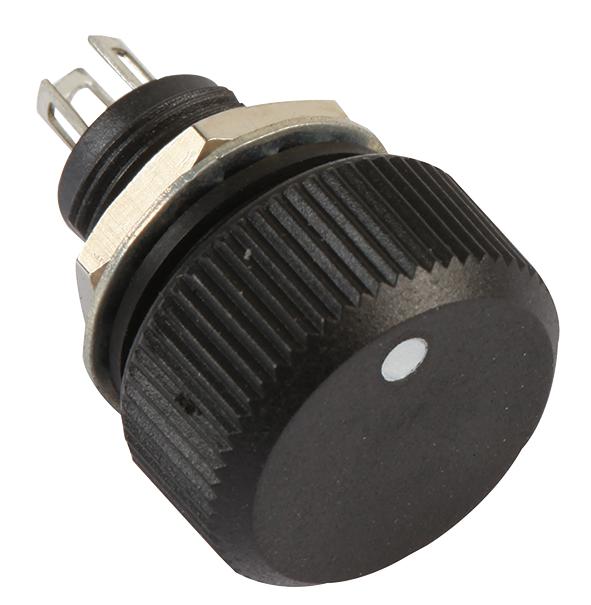

Vishay PA16NP473MAB15 Panel-Mounted Potentiometer
The PA16 is a compact, panel-mounted potentiometer available in metallic or plastic knob options, suitable for professional and industrial applications. It features a resistive element made of conductive plastic, sealed for environmental protection with IP67 rating, and withstands temperatures from -40°C to +85°C. The device operates with a 270° + 10° travel, has a power rating of 0.5 W at 40°C, and includes options for various resistance values. Its mechanical end travel is 300° + 5°, with a maximum operating torque of 25 N·cm, ensuring durability in tough conditions.
Vishay PA16NP473MAB15 Panel-Mounted Potentiometer Specifications:
- Resistive element: Conductive plastic
- Electrical travel: 270° + 10°
- Power rating: 0.5 W at 40°C
- Temperature range: -40°C to +85°C
- Sealing: IP67, fully sealed and panel sealed
- Mechanical travel: 300° + 5°
- Operating torque: 2 N·cm typical
- End stop torque: 25 N·cm maximum
- Max. mounting nut torque: 180 N·cm maximum
- Unit weight: 45 g
- Material: Metal or plastic knob options
- Protection grade: IP67
- Dimensions: Panel cutout diameter approximately 12 mm, thread M10 x 0.75
- Environmental: Climatic category 40/85/56
- Marking: Ohmic value, tolerance, taper code, manufacturing date
Buy the Vishay Series P16 Potentiometer: PA16NP473MAB15
Order the Vishay PA16NP473MAB15 online today to ensure reliable performance with IP67 sealing, a 270° operational range, and a conductive plastic resistive element. Designed for professional and industrial use, this compact potentiometer provides precise control in demanding environments. Its fully sealed construction withstands harsh conditions, making it ideal for audio equipment, instrumentation, and automation systems. Experience durability, ease of installation, and high-quality performance by purchasing online—the perfect choice for your engineering projects and maintenance needs.
Get Vishay PA16NP473MAB15 today—built for precision and long-lasting durability in industrial and audio applications.
Frequently Asked Questions
Where can I buy Vishay PA16NP473MAB15?
You can click on the BUY or RFQ button to purchase PA16NP473MAB15 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part PA16NP473MAB15?
You can download the PA16NP473MAB15 datasheet or visit the Vishay website for support.
Who is the manufacturer of PA16NP473MAB15?
Vishay
