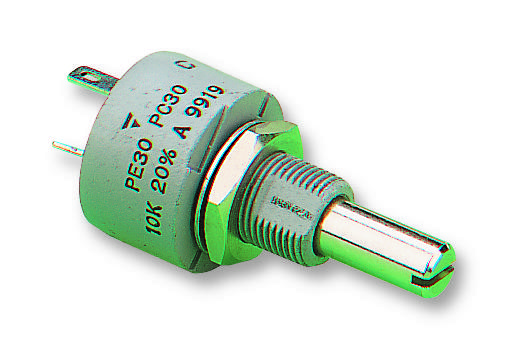

Vishay PE30L0FL103KLB Sealed Industrial Potentiometer
The Vishay Sfernice PE30L0FL103KLB is a fully sealed professional-grade potentiometer with a resistance value of 10 kΩ. It features a cermet resistive element for high stability and low temperature coefficient, rated at 3 W at 70°C. The device offers a rugged, IP67-rated sealing for harsh environments and includes options for panel sealing, locating peg, and custom shaft designs. Mechanical travel is 300° with high durability, making it suitable for industrial controls, automation, and instrumentation requiring reliable position adjustment under demanding conditions.
Vishay PE30L0FL103KLB Sealed Industrial Potentiometer Specifications:
- Resistance: 10 kΩ
- Power Rating: 3 W at 70°C
- Electrical Travel: 270° + 10°
- Mechanical Travel: 300° + 5°
- Taper: Linear, logarithmic options available
- Temperature Range: -55°C to +125°C
- Sealing: Fully sealed, IP67
- Resistance Tolerance: ±10% to ±5% on request
- Contact Resistance Variation: <3% Rn
- Dielectric Strength: 2500 V RMS
- Insulation Resistance: 10^6 MΩ at 300 V
- End Resistance: Typical 102 Ω
- Vibration Resistance: 10 Hz to 65 Hz, 0.75 mm
- Shock Resistance: 50 g for 11 ms
- Mechanical Endurance: 25,000 cycles
- Operating Torque: Max 4.25 oz-in
- Terminals: Sn plated
- Environmental Temperature: -55°C to +125°C
Buy the Vishay Series PE30 Potentiometer: PE30L0FL103KLB
Secure your equipment with the Vishay PE30L0FL103KLB fully sealed potentiometer. Designed for harsh environments, it offers a 10kΩ resistance, 3W power rating, IP67 sealing, and reliable long-term performance. Ideal for industrial controls, automation, and instrumentation requiring precise, stable position adjustments. Its rugged construction withstands extreme temperatures and vibrations, ensuring durability and consistent operation in demanding applications. Purchase online today for trusted quality and seamless integration into your control systems.
Buy Vishay PE30L0FL103KLB now and experience unmatched reliability and performance in industrial control and automation systems.
Frequently Asked Questions
Where can I buy Vishay PE30L0FL103KLB?
You can click on the BUY or RFQ button to purchase PE30L0FL103KLB from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part PE30L0FL103KLB?
You can download the PE30L0FL103KLB datasheet or visit the Vishay website for support.
Who is the manufacturer of PE30L0FL103KLB?
Vishay
