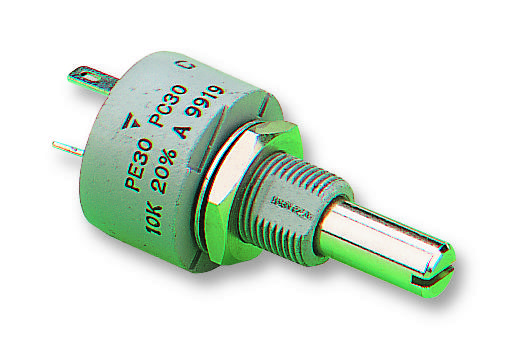

Vishay PE30L0FL223KAB industrial sealed potentiometer
The Vishay Sfernice PE30L0FL223KAB is a fully sealed, professional-grade potentiometer with a resistive cermet element, IP67 sealing, and high power rating of 3 W at 70°C. It features a 270° + 10° electrical travel with a linear taper, resistance range from 22 Ω to 10 MΩ, and a mechanical travel of 300° + 5°. Designed for industrial applications, it offers stability, durability, and options like panel sealing, shaft locking, and custom shafts, suitable for demanding environments requiring precise control.
Vishay PE30L0FL223KAB industrial sealed potentiometer Specifications:
- Sealing level: IP67
- Electrical travel: 270° + 10°
- Mechanical travel: 300° + 5°
- Resistance range: 22 Ω to 10 MΩ
- Power rating: 3 W at 70°C
- Temperature range: -55°C to +125°C
- End resistance: <19Ω typical
- Dielectric strength: 2500 V RMS
- Insulation resistance: >10 MΩ at 300V
- Operating torque: 4.25 oz.-inch (nominal)
- Tightening torque of mounting nut: 22 Ib-in (max)
- Vibration resistance: 0.75 mm or 10 g's during 6 hours
- Durability: 25,000 cycles
- Body material: Metal with sealing ring
- Terminals: Pure Sn
- Optional features include panel sealing, shaft locking, custom shafts, and locating peg.
Buy the Vishay PE30L0FL223KAB – Reliable Industrial Potentiometer for Control Applications
Order the Vishay PE30L0FL223KAB online today—designed for industrial control and precision voltage adjustment. Featuring IP67 sealing, resistances from 22 ohms to 10 megaohms, high power rating of 3W, and a robust cermet element. This fully sealed potentiometer is ideal for harsh environments requiring reliable, long-term performance. With options for panel sealing, shaft locking, and custom configurations, it ensures durability, precise control, and easy installation. Purchase now for industrial applications demanding high reliability and stability.
Get Vishay PE30L0FL223KAB today—built for precision and long-lasting durability in demanding industrial environments.
