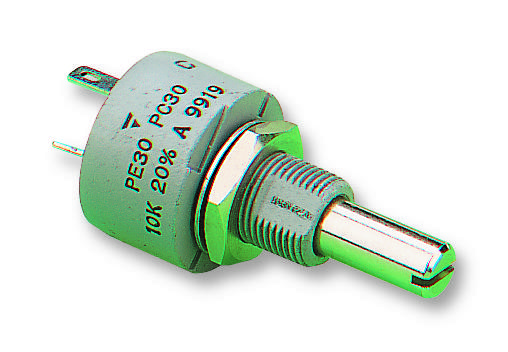

Vishay PE30L0FL473KLB Sealed Potentiometer
The Vishay Sfernice fully sealed potentiometer is designed for military and professional applications, featuring high power rating of 3 W at 70°C, low temperature coefficient of 150 ppm/°C, and a durable cermet element. It offers full sealing, use of faston 2.86 connections, and complies with CECC 41000 and IEC 60393-1 standards. Mechanical travel is 300° with precision end stop and optional center detent, making it ideal for industrial control, instrumentation, and harsh environment applications. Custom designs, panel mounting options, and shaft configurations are available for versatile deployment.
Vishay PE30L0FL473KLB Sealed Potentiometer Specifications:
- Power Rating: 3 W at 70°C
- Electrical Travel: 270° + 10°
- Mechanical Travel: 300° + 5°
- Resistance Range: 100 Ω to 2.2 MΩ
- Resistance Tolerance: Standard 20%, on request 10%
- Temperature Coefficient: typically 150 ppm/°C
- Limit Voltage: 300 V
- Dielectric Strength: RMS 2500 V
- Insulation Resistance: > 10^8 Ω at 800 VDC
- End Resistance: typical 19 Ω
- Contact Resistance Variation: < 3%
- Operating Torque: max 4.25 oz.-inch
- Sealing: Fully sealed, IP67
- Environmental Temperature Range: -55°C to +125°C
- Vibration: 0.75 mm displacement or 10.9 g for 6 hours
- Shock: 3 shocks at 50 g for 11 ms
- Mechanical Endurance: 25,000 cycles
- Material: Cermet resistive element, Sn terminal plating
- Mounting: Panel mount with sealing ring optional
- Certifications: CECC 41000, IEC 60393-1, RoHS
Buy the Buy Vishay Sealed Potentiometer Part Number PE30L0FL473KLB Online
Order the Vishay Sealed Potentiometer PE30L0FL473KLB online today to benefit from high power handling, full IP67 sealing, and superior durability for industrial and military applications. This precise, robust component features a 300° travel, customizable options, and industry-standard compliance. Ideal for harsh environments, it ensures long-lasting performance with a resistance range from 100 Ω to 2.2 MΩ and a temperature range of -55°C to +125°C. Secure your supply of reliable control components today and enhance your technical projects with Vishay quality.
Buy Vishay PE30L0FL473KLB now and experience unmatched reliability and performance in harsh environments with precise control and sealed durability.
Frequently Asked Questions
Where can I buy Vishay PE30L0FL473KLB?
You can click on the BUY or RFQ button to purchase PE30L0FL473KLB from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part PE30L0FL473KLB?
You can download the PE30L0FL473KLB datasheet or visit the Vishay website for support.
Who is the manufacturer of PE30L0FL473KLB?
Vishay
