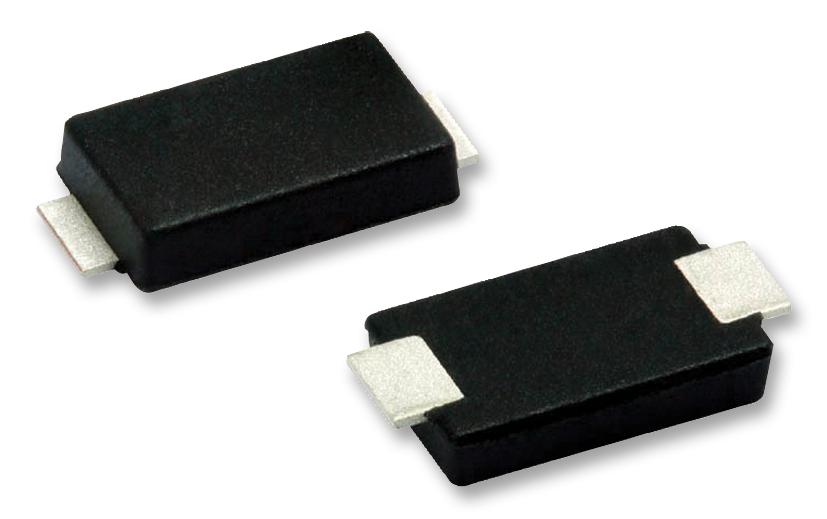

Vishay VSS8D3M12M3H Surface-Mount Rectifier
The VSS8D3M12 is a high-performance surface-mount TMBS® (Trench MOS Barrier Schottky) rectifier in a SlimSMAW package, designed for high-frequency inverters, freewheeling, and DC/DC converter applications. It features a low-profile, halogen-free, RoHS-compliant construction, and is AEC-Q101 qualified for automotive use. With a maximum repetitive peak reverse voltage of 120V, rated forward current of 2A, and surge currents up to 60A, this rectifier offers excellent thermal and electrical characteristics, making it ideal for modern industrial and automotive power systems.
Vishay VSS8D3M12M3H Surface-Mount Rectifier Specifications:
- Case: SlimSMAW (DO-221AD)
- Maximum repetitive peak reverse voltage: 120 V
- Maximum average forward rectified current: 2 A
- Peak forward surge current: 60 A
- Operating junction temperature range: -40 to +175 °C
- Storage temperature range: -55 to +175 °C
- Material: Halogen-free, RoHS-compliant, complies with UL 94 V-0 flammability rating
- Terminals: Matte tin plated leads, solderable, meets JESD 201 class 2 whisker test
- Thermal resistance junction-to-ambient: 120°C/W (typ.)
- Typical junction capacitance: 310 pF at 4.0 V, 1 MHz
- Polarity: color band on cathode
- Mounting options: on recommended copper pad area or 30 mm x 30 mm PCB pad
- Order codes: VSS8D3M12-M3/H, VSS8D3M12-H, etc., with reel packaging
- Designed for automotive, industrial, and commercial high-frequency power applications
Buy the VISHAY Series TMBS VSS8D3M12: 120V 2A Surface-Mount Rectifier
Get the Vishay TMBS Surface-Mount Rectifier VSS8D3M12 today and ensure robust performance in high-frequency inverter and power conversion systems. This 120V, 2A device features low forward voltage and high surge capability, ideal for automotive, industrial, and commercial applications. Its halogen-free, RoHS-compliant construction meets strict environmental standards, while the AEC-Q101 qualification guarantees automotive reliability. With excellent thermal management and compact design, this rectifier provides dependable, efficient power rectification for your critical electronic systems. Order now for fast delivery and seamless integration into your power modules.
Order your Vishay Series TMBS VSS8D3M12 today and give your power circuits the reliable, high-efficiency rectification they need for industrial and automotive projects.
Frequently Asked Questions
Where can I buy Vishay VSS8D3M12M3H?
You can click on the BUY or RFQ button to purchase VSS8D3M12M3H from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VSS8D3M12M3H?
You can download the VSS8D3M12M3H datasheet or visit the Vishay website for support.
Who is the manufacturer of VSS8D3M12M3H?
Vishay
