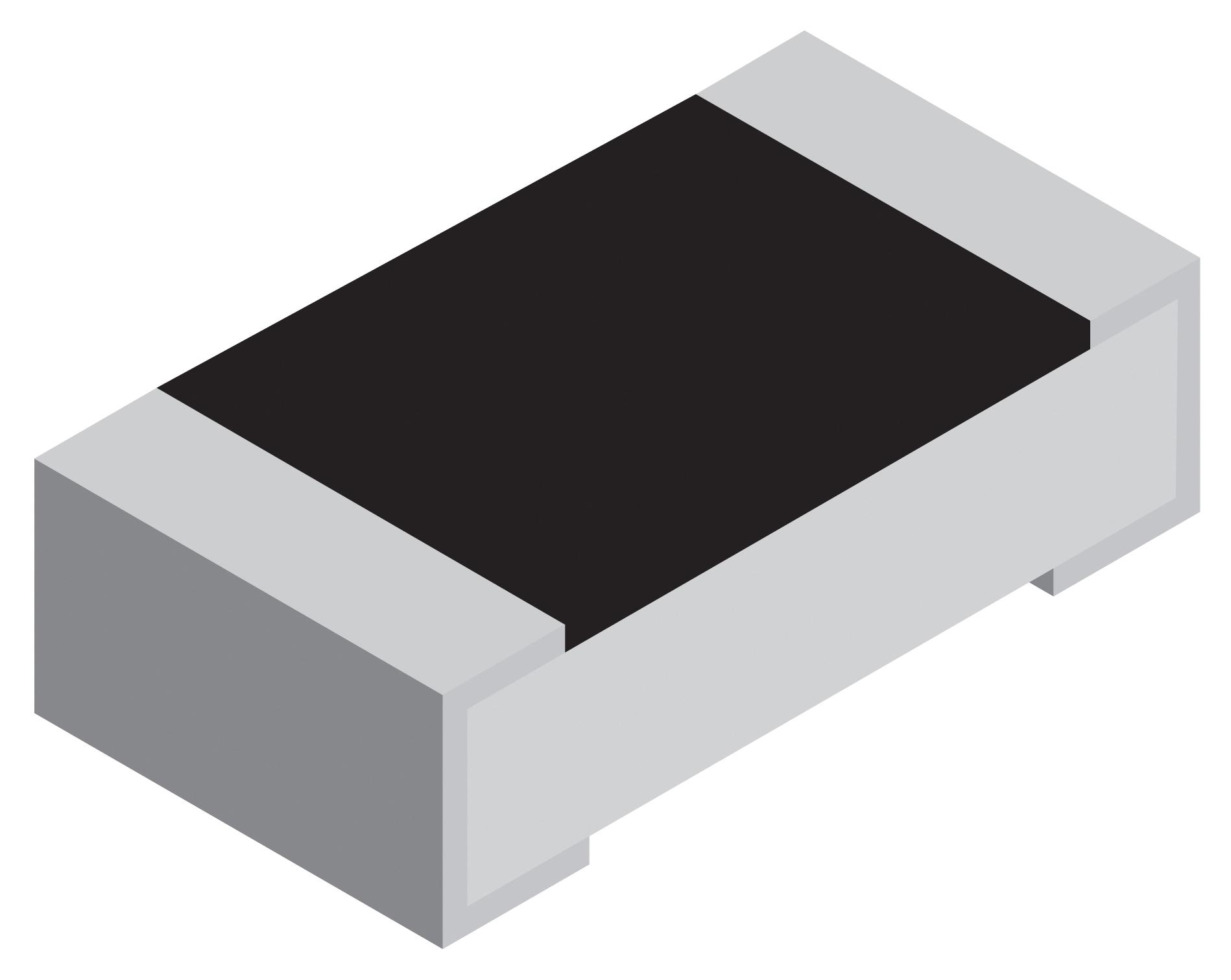

Vishay RCC080520K0FKEA High Power Thick Film Resistor
This high-power thick film chip resistor series offers increased power ratings and operating voltages for demanding applications in automotive, industrial, and telecommunications sectors. Manufactured with a cermet film layer on a high-grade ceramic substrate and finished with pure tin plating, these resistors ensure long-term stability, durability, and compliance with RoHS and AEC-Q200 standards. Suitable for automatic SMD assembly processes, they withstand rigorous testing conditions including thermal, humidity, vibration, and electrical overloads, making them ideal for reliable performance in harsh environments.
Vishay RCC080520K0FKEA High Power Thick Film Resistor Specifications:
- Sizes: RCC0402, RCC0603, RCC0805
- Resistance Range: 1.0 to 10 MQ
- Resistance Tolerance: ±5%
- Temperature Coefficient: ±200 ppm/K (RCC0402, RCC0603), ±100 ppm/K (RCC0805)
- Rated Dissipation: 0.125 W (0402), 0.2 W (0603), 0.25 W (0805)
- Maximum Operating Voltage: 75 V (0402), 150 V (0603), 200 V (0805)
- Film Temperature Limit: 155°C
- Operating Temperature Range: -55°C to +155°C
- Resistance Change After 1000h at Power: <30%
- Operating Voltage (Insulation): 100 V (0402), 200 V (0603), 300 V (0805)
- Manufactured with cermet film layer and glass-over on ceramic substrate
- Pure tin on nickel plating, RoHS compliant, suitable for wave, reflow, and vapor-phase soldering
- Endurance tested in accordance with IEC standards, resistant to thermal and humidity stress
- Dimensions (mm): RCC0402: 1.0 x 0.5 x 0.35; RCC0603: 1.55 x 0.85 x 0.45; RCC0805: 2.0 x 1.25 x 0.45
- Safe for use in automotive electronic systems, industrial control, and telecommunication equipment
Buy the Vishay Series RCC e3 Resistors: RCC0603 1K 5%: 200 ppm/K
Order Vishay high power thick film resistors online today and ensure your circuits operate with superior stability, high voltage capacity, and durability. Designed for automotive, industrial, and telecom applications, these resistors are RoHS compliant and tested for rigorous environmental stresses. Their precise resistance, temperature stability, and robust construction make them ideal for demanding conditions. With easy online purchasing, you can quickly integrate these resistors into your system, ensuring reliable performance, longevity, and compliance with international standards in a seamless, hassle-free process.
Buy Vishay RCC0603 1K 5% resistors now and experience unmatched reliability and performance in demanding electronic applications.
Frequently Asked Questions
Where can I buy Vishay RCC080520K0FKEA?
You can click on the BUY or RFQ button to purchase RCC080520K0FKEA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part RCC080520K0FKEA?
You can download the RCC080520K0FKEA datasheet or visit the Vishay website for support.
Who is the manufacturer of RCC080520K0FKEA?
Vishay
