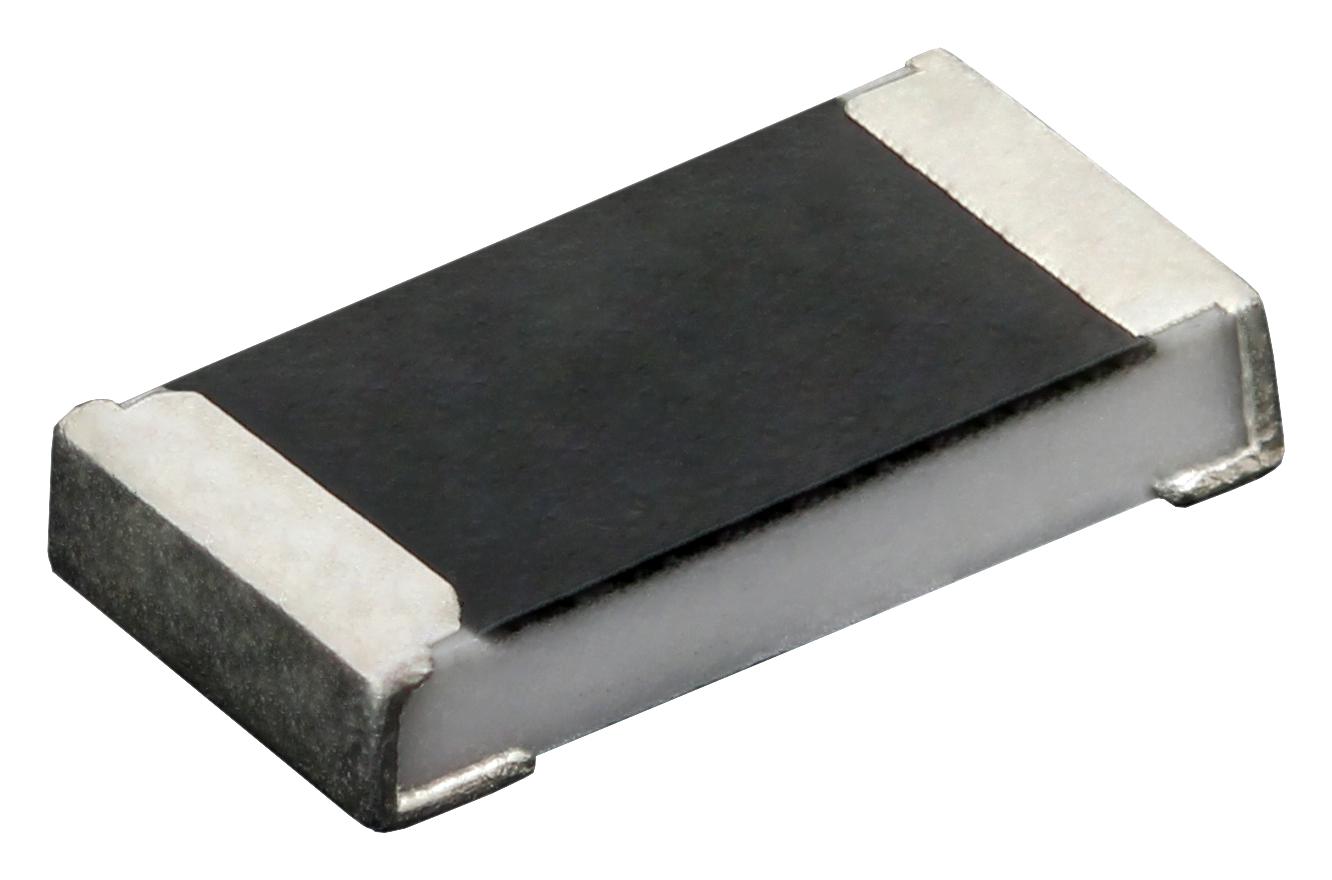

Vishay RCC12060000Z0EA Thick Film Chip Resistor
The RCC1206 e3 series resistors are high-reliability thick film chip components optimized for applications demanding increased power dissipation and voltage. Featuring a ceramic substrate with a cermet film resistive layer, these resistors are laser trimmed for precision. They are protected with a durable coating and finished with pure tin on nickel plating, ensuring excellent electrical, mechanical, and climatic protection. Suitable for automatic placement, reflow, wave, or vapor phase soldering, they meet RoHS standards and are qualified according to AEC-Q200, making them ideal for automotive, industrial, telecommunications, and medical electronics.
Vishay RCC12060000Z0EA Thick Film Chip Resistor Specifications:
- Size: 1206 (3.2 mm x 1.6 mm x 0.55 mm)
- Resistance range: 1 to 10 MΩ
- Resistance tolerance: ±1%
- Temperature coefficient: ±100 ppm/K
- Rated dissipation: 0.5 W
- Maximum operating voltage: 200 V
- Film temperature: Max 155°C
- Operating temperature: -55°C to +155°C
- Material: Ceramic substrate with cermet resistive layer
- Termination: Pure tin on nickel plating
- Soldering: Suitable for reflow, wave, vapor phase soldering
- Compliance: RoHS, AEC-Q200 qualified
- Protection: Coated for electrical and climatic stability
- Packaging: Tape and reel, 10,000 units, 285 mm pitch
- Environmental testing: Thermal, humidity, vibration, electrostatic discharge, and mechanical robustness
Buy the Vishay Series RCC1206 High Power Resistor: RCC12060000Z0EA
Purchase the Vishay Series RCC1206 high power thick film chip resistor online today for robust, AEC-Q200 qualified components designed for automotive, industrial, and telecommunications electronics. With increased power rating of 0.5 W and a maximum voltage of 200 V, these resistors ensure dependable operation under demanding conditions. Featuring a ceramic substrate with a durable protective coating and pure tin termination, they are compatible with automatic soldering methods including reflow, wave, and vapor phase. Suitable for long-term reliability and climatic stability, order now to integrate high-performance resistors into your next project with ease and confidence.
Order your Vishay Series RCC1206 high power resistor today and ensure reliable performance in demanding electronic applications.
Frequently Asked Questions
Where can I buy Vishay RCC12060000Z0EA?
You can click on the BUY or RFQ button to purchase RCC12060000Z0EA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part RCC12060000Z0EA?
You can download the RCC12060000Z0EA datasheet or visit the Vishay website for support.
Who is the manufacturer of RCC12060000Z0EA?
Vishay
