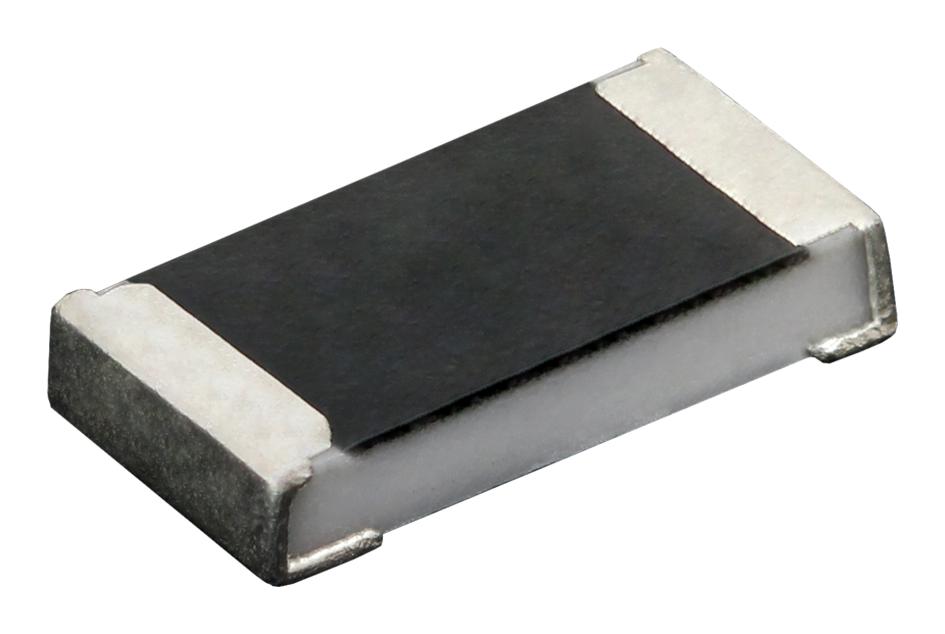

Vishay RCS08051K20FKEA High Power Thick Film Resistor
The RCS e3 series are high-power thick film chip resistors designed for superior surge pulse capability and high dissipation performance. Suitable for automotive, industrial, and telecommunication applications, these resistors feature a ceramic substrate with a tailored resistor layer, protective coating, and pure tin plating for reliable soldering. Certified for AEC-Q200, they withstand demanding environmental conditions with excellent stability, low noise, and long-term durability. Their compact SMD design allows for easy automatic processing, making them ideal for high-reliability electronic systems requiring precise, high-power resistors.
Vishay RCS08051K20FKEA High Power Thick Film Resistor Specifications:
- Size: 0805 (2.0 x 1.25 mm)
- Resistance Range: 10 to 10MΩ
- Resistance Tolerance: 1%
- Temperature Coefficient: ±100 ppm/K
- Rated Dissipation: 0.4W
- Maximum Operating Voltage: 150V
- Operating Temperature Range: -55°C to +155°C
- Film Temperature: Max 155°C
- Material: Ceramic substrate with cermet film layer
- Protection: Protective coating, pure tin on nickel plating
- Endurance: 1000 to 8000 hours at high temperature
- Standards: AEC-Q200 qualified
- Environmental Resistance: Climatic, damp heat, vibration, and mechanical tests passed
Buy the Vishay Series RCS e3 High Power Thick Film Resistors: RCS0805 e3
Experience top-tier performance with Vishay Series RCS0805 e3 high power thick film resistors. Engineered for automotive, industrial, and telecom use, these resistors combine high surge pulse capability, excellent environmental stability, and easy integration into automated assembly lines. Their compact size, robust construction, and RoHS compliance ensure dependable operation even in demanding conditions. Whether you need long-life reliability or high thermal dissipation, these resistors deliver consistent performance, making them an essential choice for high-reliability electronic applications.
Order your Vishay Series RCS0805 e3 high power resistors today and enhance your electronic designs with reliable surge performance and long-term stability.
Frequently Asked Questions
Where can I buy Vishay RCS08051K20FKEA?
You can click on the BUY or RFQ button to purchase RCS08051K20FKEA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part RCS08051K20FKEA?
You can download the RCS08051K20FKEA datasheet or visit the Vishay website for support.
Who is the manufacturer of RCS08051K20FKEA?
Vishay
