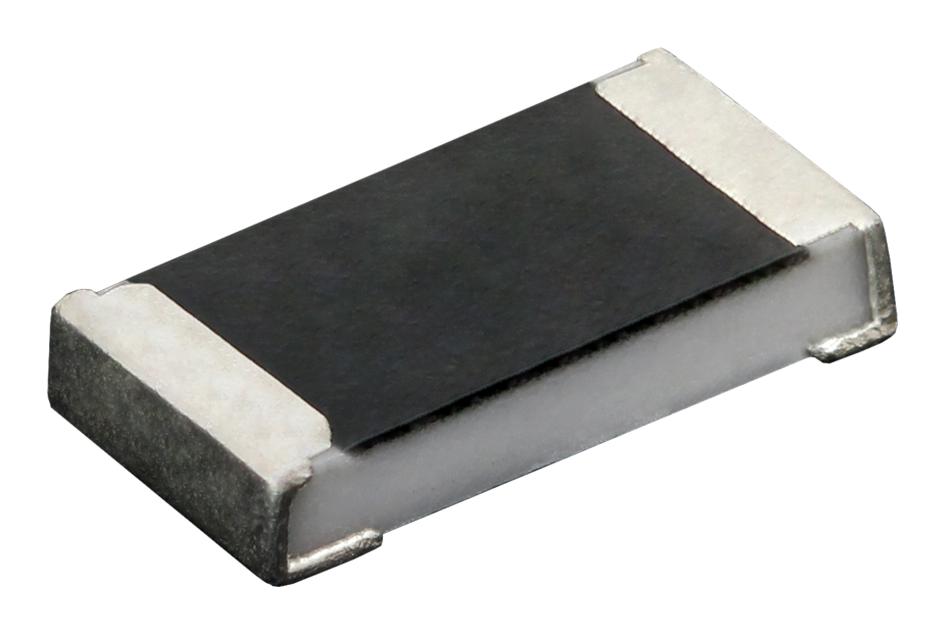

Vishay RCS0805220RJNEA High Power Thick Film Resistor
The RCS e3 series resistors are high-power thick film chip resistors designed for industrial, automotive, telecommunications, and medical applications. They feature excellent surge pulse capability, high power ratings, and RoHS compliance. Manufactured with a ceramic substrate coated with a cermet film and a glass-over layer, they undergo extensive testing for electrical, mechanical, and climatic resilience. Suitable for automatic assembly and reflow soldering, these resistors include pure tin on nickel plating for long-term solderability and are qualified per AEC-Q200 standards for automotive use.
Vishay RCS0805220RJNEA High Power Thick Film Resistor Specifications:
- Size: RCS0402 1.0 x 0.5 mm, RCS0603 1.55 x 0.85 mm, RCS0805 2.0 x 1.25 mm, RCS1206 3.2 x 1.6 mm
- Resistance Range: 1.9 to 10 MΩ, specific values up to 10 MΩ available
- Resistance Tolerance: ±5%, ±1%, or ±0.5%
- Temperature Coefficient: +200 ppm/K or +100 ppm/K
- Rated Dissipation: 0.2W (0402), 0.25W (0603), 0.4W (0805), 0.5W (1206)
- Operating Voltage (Umax): 50V (0402), 75V (0603), 150V (0805), 200V (1206)
- Permissible Film Temperature: 155°C
- Operating Temperature Range: -55°C to +155°C
- Material: Ceramic substrate with cermet film, glass-over coating
- Termination: Pure tin on nickel plating for solderability
- Compliance: RoHS, AEC-Q200 qualified, suitable for lead-free processes
- Shock and Vibration Resistance: All tested per IEC standards
- Assembly: Suitable for automatic SMD placement, wave, reflow or vapor phase soldering
- Environmental Resilience: Meets various IEC and JEITA testing standards for climate, damp heat, and mechanical stress
Buy the Vishay RCS0805 e3 – Reliable High Power Thick Film for Industrial Applications
Experience exceptional surge pulse performance with Vishay high power thick film resistors. Designed for reliability in automotive, industrial, and telecommunications sectors, these resistors are RoHS compliant and qualified under AEC-Q200 standards. Manufactured with advanced materials, they offer high dissipation, wide resistance range, and superior environmental resilience. Perfect for automated assembly and high-stress applications, these resistors ensure stable operation across a broad temperature spectrum. Buy Vishay thick film resistors online today for dependable performance and long-term operational durability in your critical systems.
Get Vishay RCS0805 e3 today—built for high surge pulse capability and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy Vishay RCS0805220RJNEA?
You can click on the BUY or RFQ button to purchase RCS0805220RJNEA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part RCS0805220RJNEA?
You can download the RCS0805220RJNEA datasheet or visit the Vishay website for support.
Who is the manufacturer of RCS0805220RJNEA?
Vishay
