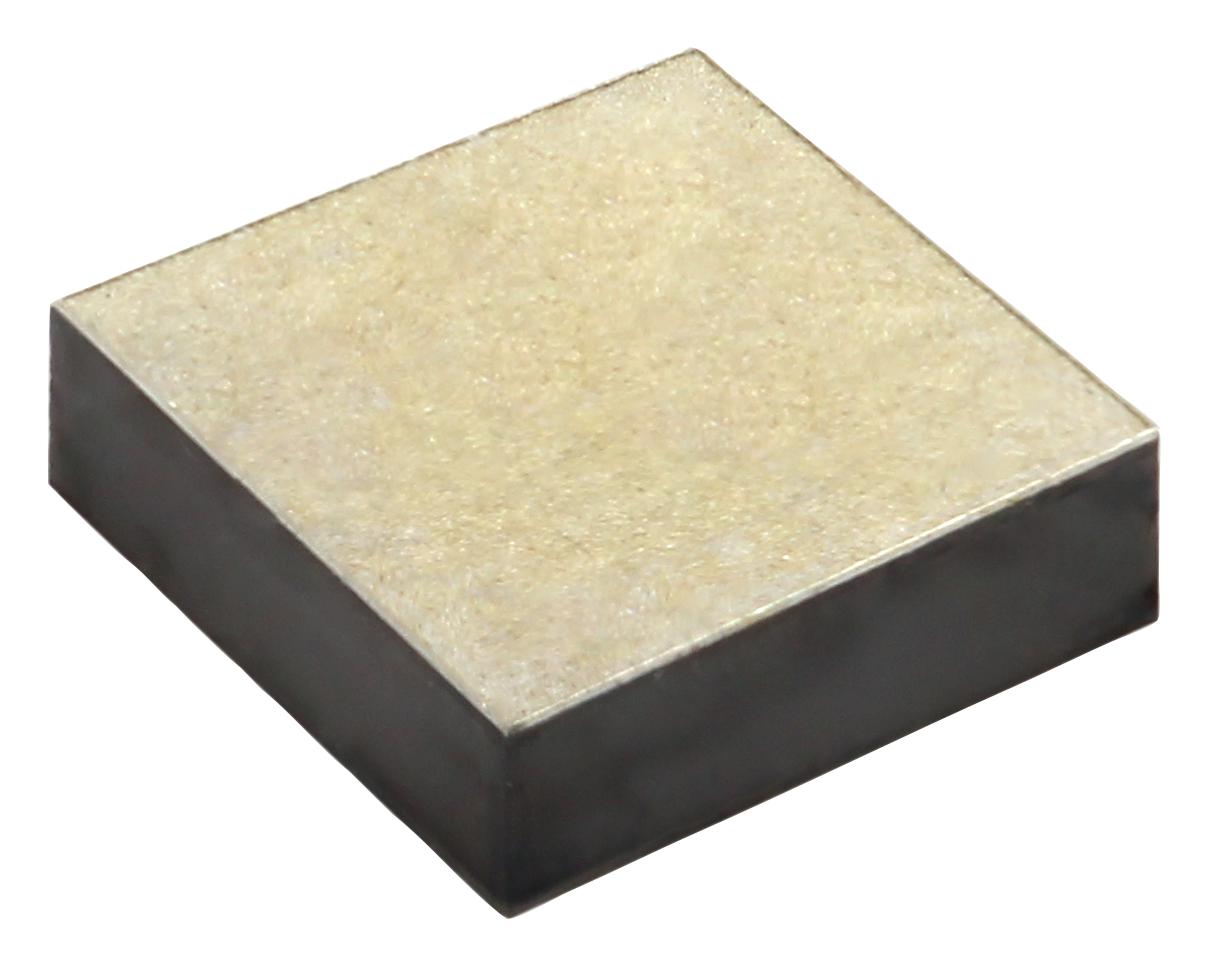

Vishay NTCC200E4C90008 NTC Thermistor Die
The Vishay NTCC200E4C90008 is a leadless NTC thermistor die designed primarily for wire bonding applications, including high-temperature sensing, control, and semiconductor protection. It features a flat chip contact surface on the top and bottom with silver electrodes, suitable for aluminum or gold wire bonding up to 32 um diameter. Featuring a resistance of 5063Ω at 25°C, it operates across a wide temperature range from -85°C to +175°C, with quick response times and high thermal shock resistance. Delivered on blister tape, it’s ideal for automotive, inverter, and power management systems requiring precise temperature measurement and control.
Vishay NTCC200E4C90008 NTC Thermistor Die Specifications:
- Resistance at 25°C: 5063Ω
- Resistance at 100°C: 493.3Ω
- Tolerance on RQQ: ±5%
- Bosjes-value: 3435K
- Tolerance on Bosjes-value: ±1%
- Operating temperature range: -85°C to +175°C
- Maximum power dissipation: 50 mW
- Weight: 3 mg
- Dimensions: Length 0.7 mm max., wire bondable surface 2+0.1 mm
- Encapsulation: Silicon or epoxy (customer defined)
- Delivery: On 8 mm blister tape, 2000 die per reel
- Wire bonding: Suitable for gold and aluminum wires of 32 μm diameter
- Material: Silver electrodes, flat chip contact surface
- Response time (63.2%): Not specified but optimized for thermal shock resistance
Buy the Vishay Series NTCC Thermistor: NTCC200E4C90008
Purchase the Vishay NTCC200E4C90008 thermistor die online today to enhance your temperature sensing applications. Ideal for wire bonding in automotive, inverter, and semiconductor protection, this leadless thermistor offers wide temperature operation from -85°C to +175°C plus quick response and high thermal shock resistance. Delivered on blister tape, it ensures easy integration into your manufacturing process. Its flat chip design with silver electrodes provides excellent bonding capability. By ordering now, you get a high-quality component suited for demanding power control and high-temperature environments, backed by Vishay’s trusted reliability.
Order your Vishay Series NTCC200E4C90008 thermistor die today and ensure reliable high-temperature sensing and protection for your automotive and power systems.
Frequently Asked Questions
Where can I buy Vishay NTCC200E4C90008?
You can click on the BUY or RFQ button to purchase NTCC200E4C90008 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part NTCC200E4C90008?
You can download the NTCC200E4C90008 datasheet or visit the Vishay website for support.
Who is the manufacturer of NTCC200E4C90008?
Vishay
