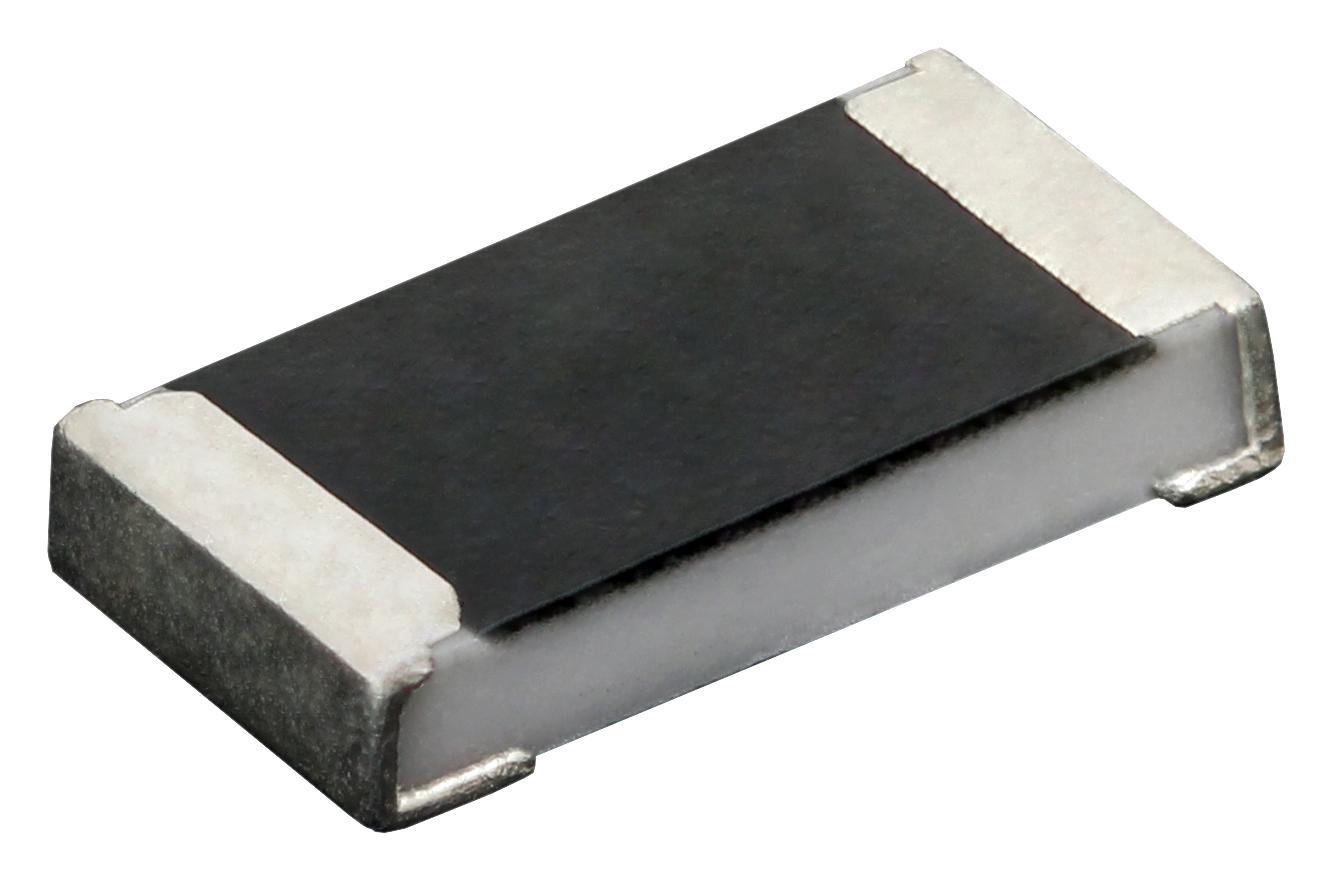

Vishay RCS120622K0JNEA Thick Film Chip Resistor
The anti-surge high power thick film chip resistor series combines exceptional surge pulse and pulse load capabilities, high power ratings, and superior ESD characteristics. Suitable for automotive, industrial, and telecommunications applications, these resistors feature a ceramic substrate with a cermet film layer, laser trimming for accuracy, and protective coatings for environmental resilience. RoHS-compliant with pure tin plate terminations, they can be processed via wave, reflow, or vapor phase soldering. Qualified to AEC-Q200 standards, they ensure durability and stability in demanding electronic systems.
Vishay RCS120622K0JNEA Thick Film Chip Resistor Specifications:
- Size: RCS0402 (1.0 x 0.5 mm), RCS0603 (1.55 x 0.85 mm), RCS0805 (2.0 x 1.25 mm), RCS1206 (3.2 x 1.6 mm)
- Resistance Range: 1.9 to 10 MΩ
- Resistance Tolerance: ±5%, ±1%, ±0.5%
- Temperature Coefficient: ±200 ppm/K or ±100 ppm/K
- Rated Dissipation: 0.2W (0402), 0.25W (0603), 0.4W (0805), 0.5W (1206)
- Operating Voltage: 50V (0402), 75V (0603), 150V (0805), 200V (1206)
- Maximum Film Temperature: 155°C
- Operating Temperature Range: -55°C to +155°C
- Material: Cermet film on Al2O3 ceramic substrate with glass-over coating
- Termination: Pure tin on nickel plating, RoHS-compliant
- Environmental: Resistant to solvents, suitable for automatic SMD mounting
- Compliance: AEC-Q200 qualified, RoHS, compliant with IEC standards
Buy the Vishay RCS0805 High Power Thick Film Resistor – Reliable Surge for Industrial Applications
Secure your electronic designs with Vishay thick film chip resistors. Engineered for high surge pulse capability, these resistors offer superior reliability in automotive, industrial, and telecommunications systems. Their robust construction, RoHS compliance, and AEC-Q200 qualification guarantee durability under demanding conditions. Perfect for automatic SMD assembly with excellent environmental resistance, these resistors deliver precision and long-term stability. Order online today to benefit from competitive pricing, fast delivery, and proven performance that will enhance your electronic products' durability and efficiency.
Buy Vishay RCS0805 high power thick film resistors now and ensure reliable surge resistance and stability for your industrial and automotive electronics.
Frequently Asked Questions
Where can I buy Vishay RCS120622K0JNEA?
You can click on the BUY or RFQ button to purchase RCS120622K0JNEA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part RCS120622K0JNEA?
You can download the RCS120622K0JNEA datasheet or visit the Vishay website for support.
Who is the manufacturer of RCS120622K0JNEA?
Vishay
