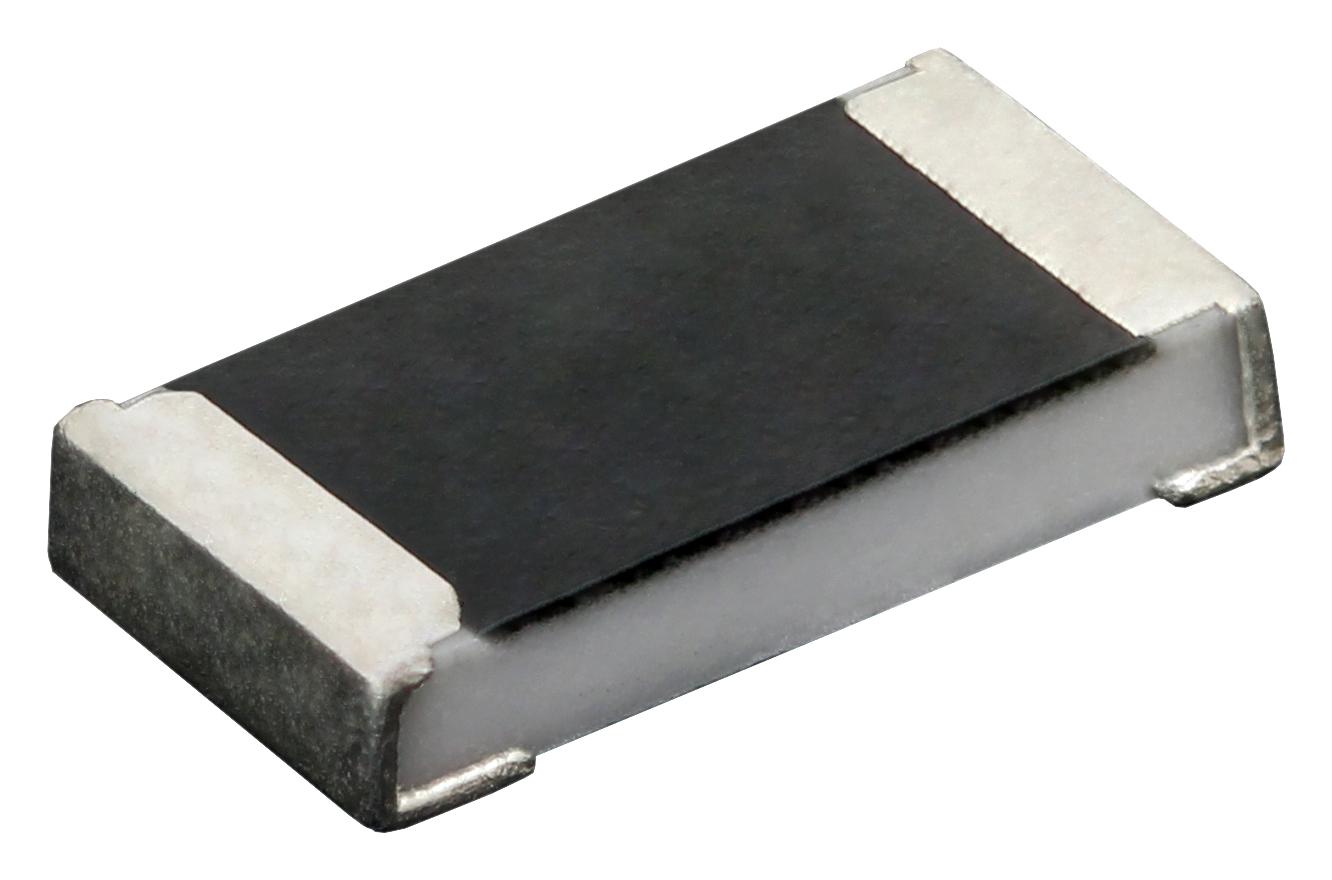

Vishay RCS1206470RFKEA High Power Thick Film Resistor
The RCS e3 series resistors are high-power, anti-surge thick film chip components designed for demanding applications like automotive, industrial, and telecommunications. Featuring excellent surge pulse capability and RoHS compliance, these resistors are produced through precise laser trimming on high-grade ceramic substrates, with protective coatings and pure tin plated terminations for enhanced durability. They are suitable for automatic mounting, reflow, wave, or vapor phase soldering, resistant to solvents, and qualified for long-term performance under various environmental stresses, including high temperature, humidity, and vibration, conforming to industry standards such as AEC-Q200.
Vishay RCS1206470RFKEA High Power Thick Film Resistor Specifications:
- Size: RCS0402, RCS0603, RCS0805, RCS1206
- Resistance range: 1.9 to 10 MΩ
- Resistance tolerance: ±0.5%, ±1%, ±5%
- Temperature coefficient: ±100 ppm/K, ±200 ppm/K
- Rated dissipation: 0.2W, 0.25W, 0.4W, 0.5W
- Operating voltage: 50V to 200V
- Film temperature max: 155°C
- Operating temperature range: -55°C to +155°C
- Dimensions: RCS0402 (1.0x0.5 mm), RCS0603 (1.55x0.85 mm), RCS0805 (2.0x1.25 mm), RCS1206 (3.2x1.6 mm)
- Solder pad dimensions: RCS0402 (G: 0.45 mm, Y: 0.6 mm), RCS0603, RCS0805, RCS1206 with respective pad sizes as per IEC standards
- Compliance: RoHS, AEC-Q200 qualified, environmental resistance including damp heat, thermal shock, vibration, and soldering processes
- Packaging: Tape and reel, varying quantities up to 50,000 units
- Material: Ceramic substrate with cermet film, glass-over layer, pure tin over nickel plating
- Durability: Resistant to solvents, long-term stability verified through extensive testing
Buy the Buy Vishay RCS e3 High Power Thick Film Chip Resistor Part Number RCS1206470RFKEA Online
Purchase Vishay RCS1206470RFKEA online to benefit from superior surge pulse handling, high power ratings, and exceptional environmental resistance. These resistors are ideal for automotive, industrial, and telecom electronics, ensuring long-term stability, compliance with RoHS and AEC-Q200 standards, and compatibility with automated soldering processes. Their robust construction includes ceramic substrates, precise laser trimming, and pure tin plating, making them suitable for demanding applications that require durability, high pulse load capability, and reliable performance over extended periods. Order today to secure high-quality resistors for your critical projects.
Buy Vishay RCS1206470RFKEA now and experience unmatched reliability and high surge pulse performance for demanding electronic applications.
Frequently Asked Questions
Where can I buy Vishay RCS1206470RFKEA?
You can click on the BUY or RFQ button to purchase RCS1206470RFKEA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part RCS1206470RFKEA?
You can download the RCS1206470RFKEA datasheet or visit the Vishay website for support.
Who is the manufacturer of RCS1206470RFKEA?
Vishay
