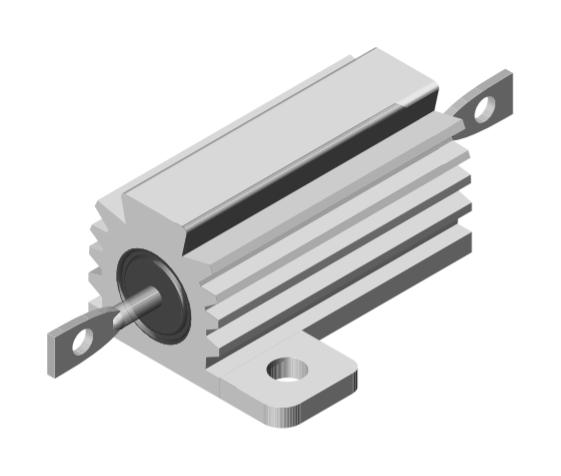

Vishay RH0051R000FE02 High Power Resistor
High Power Resistor designed for high current applications, offering reliable performance and durability in various electronic circuits. These aluminum-housed, chassis-mount resistors are mold-encapsulated for environmental protection, meet MIL-PRF-18546 standards, and feature non-inductive styles with Ayrton-Perry winding for lowest reactive components. Suitable for industrial and power electronics, they provide excellent stability (<1% change in resistance) across a wide temperature range (-55°C to +250°C). Available with various resistance values, wattages, and lead materials, ensuring flexibility for demanding high-power applications. Suitable for mounting on heat sinks for optimal heat dissipation.
Vishay RH0051R000FE02 High Power Resistor Specifications:
- Resistance Range: 0.5 to 116K ohms
- Power Ratings: 5W, 10W, 20W, 40W, 100W, 125W, 250W depending on size and mounting conditions
- Temperature Coefficient: ±20 ppm/°C for 10 ohms and above; ±50 ppm/°C for 10 to 9.90 ohms; ±100 ppm/°C for 0.12 ohms
- Maximum Voltage: 1000 V for RHO05, RHO10, RHO25; 2000 V for RHO50; 4500 V for RH100 and RH250
- Operating Temperature Range: -55°C to +250°C
- Insulation Resistance: ≥10 MΩ dry, ≥1000 MΩ after moisture test
- Material: Copper-nickel or nickel-chrome alloy element, ceramic core, silicone encapsulant, aluminum housing with anodic coating, stainless steel end caps
- Terminals: Tin/lead, lead-free options available, threaded stainless steel for larger models
- Dimensions: Ranges based on model, e.g., RHO05 (0.444 inches), RHO250 (0.719 inches)
- Mounting: Chassis mount with heat sink compatibility, area varies (e.g., 129 sq. in for RHO05, 294 sq. in for RH100)
- Standards: MIL-PRF-18546 qualified, RoHS and halogen-free compliant
- Performance Tests: Thermal shock, overload, voltage withstand, moisture resistance, shock, vibration, load life, terminal strength
Buy the Vishay RHO005 – Reliable High Power Resistor for Industrial Applications
Purchase Vishay high power resistors online today—designed for demanding industrial, power electronics, and high-current circuits. These resistors feature aluminum housing for durability, effective heat sinking capabilities, and low reactive components for stable operation across a wide temperature range. Whether you need a 5W, 10W, or higher wattage resistor, our online store provides numerous resistance values, sizes, and specialized configurations with lead options. Built to meet MIL-PRF-18546 standards, these resistors ensure reliability, environmental protection, and long-lasting performance for your electronic applications. Order now for quick delivery and technical support.
Get Vishay RHO005 today—built for high current durability and environmental resilience.
Frequently Asked Questions
Where can I buy Vishay RH0051R000FE02?
You can click on the BUY or RFQ button to purchase RH0051R000FE02 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part RH0051R000FE02?
You can download the RH0051R000FE02 datasheet or visit the Vishay website for support.
Who is the manufacturer of RH0051R000FE02?
Vishay
