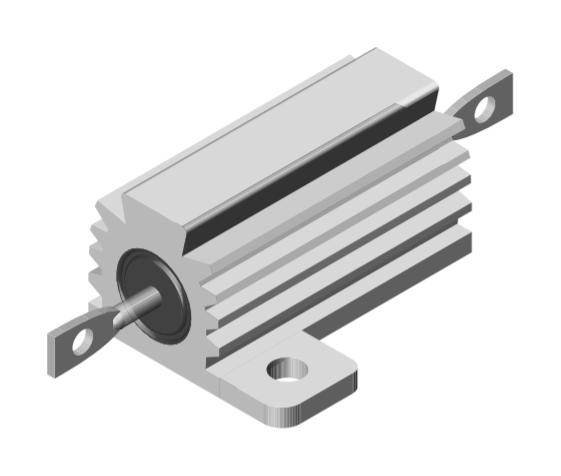

Vishay RH025600R0FC02 Power Resistor
The RH025600R0FC02 is a wirewound power resistor designed for high stability and reliability in industrial applications. Featuring a compact aluminum housing with solder lug terminations, it provides excellent environmental protection and mechanical strength. An optional non-inductive (Ayrton-Perry) version reduces reactive components for sensitive electronic circuits. This resistor conforms to CECC 40 203 standards, with a typical temperature coefficient of around ±15ppm/°C. Its rugged construction suits power dissipation, heat sinking, and chassis mounting in demanding environments.
Vishay RH025600R0FC02 Power Resistor Specifications:
- Power Rating: 25 W at 25°C with heat sink
- Resistance Range: 0.5 to 116K ohms
- Tolerance: 1%, 5%
- Temperature Coefficient: ±15ppm/°C (typical)
- Operating Temperature Range: -55°C to +250°C
- Housing Material: Aluminum with hard anodic coating
- Terminals: Tin/lead or Nickel/Pd/Au-plated steel, threaded stainless steel for RHO100 and RHO250
- Insulation Resistance: ≥10,000 MΩ dry, ≥1000 MΩ after moisture test
- Maximum Working Voltage: 4500 V for RH100 and RH250; 1000 V for RHO variants
- Mounting: Chassis mount using stainless steel nut and stud
- Environmental protection: Complete molded construction, RoHS compliant
Buy the Vishay Series Power Resistor: RH025600R0FC02
Order the Vishay RH025600R0FC02 power resistor online today and enjoy superior performance for high-temperature and power applications. This wirewound resistor features aluminum housing, solder lug terminations, and a compact design that ensures durability, easy mounting, and environmental protection. Its high stability and low temperature coefficient make it ideal for industrial power supplies, heat sinks, and chassis mounting. With certified compliance to industry standards, purchasing this resistor online guarantees quick delivery and consistent quality for your demanding projects.
Buy Vishay RH025600R0FC02 high-power resistor now and experience unmatched stability and reliable performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy Vishay RH025600R0FC02?
You can click on the BUY or RFQ button to purchase RH025600R0FC02 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part RH025600R0FC02?
You can download the RH025600R0FC02 datasheet or visit the Vishay website for support.
Who is the manufacturer of RH025600R0FC02?
Vishay
